External fuel pump Question?

[Deez ballz]

Hey guys,

Whats a good external fuel pump good for 350hp-400hp max that doesn't draw a lot of current.

I want to down grade from a Bosch 044, do I have to re tune the bike if I replace the pump with another one?
or should I beef up the electrical system for more output?

Thanks.



[ItsDooomz]

These are super popular and are physically the same size as the 044. They draw a touch over 9 amps at 43.5 PSI. The 044 is in the 11 amp range.
https://store.schnitzracing.com/aem-380-lph-inline-fuel-pump/



[airborneuph]

I'm using one of these: Walbro GSL394BX Walbro High-Pressure Inline Fuel Pumps | Summit Racing , mounted externally below and behind the engine .. Fits, but it's a damn tight squeeze ..

And I still get vapor lock on hot days when I sit in stop and go traffic !



[ItsDooomz]

And I still get vapor lock on hot days when I sit in stop and go traffic !

It gets hot down there, you're boiling the fuel.



[airborneuph]

Yes, it does get hot there, but not nearly as the pump got sitting at the back of the engine, under the fuel tank .. Vapor lock was unavoidable before I moved the pump .. Now I only get it when I sit in traffic on a hot day ..

Any suggestons ? I'm all ears ..



[202mphbusa]

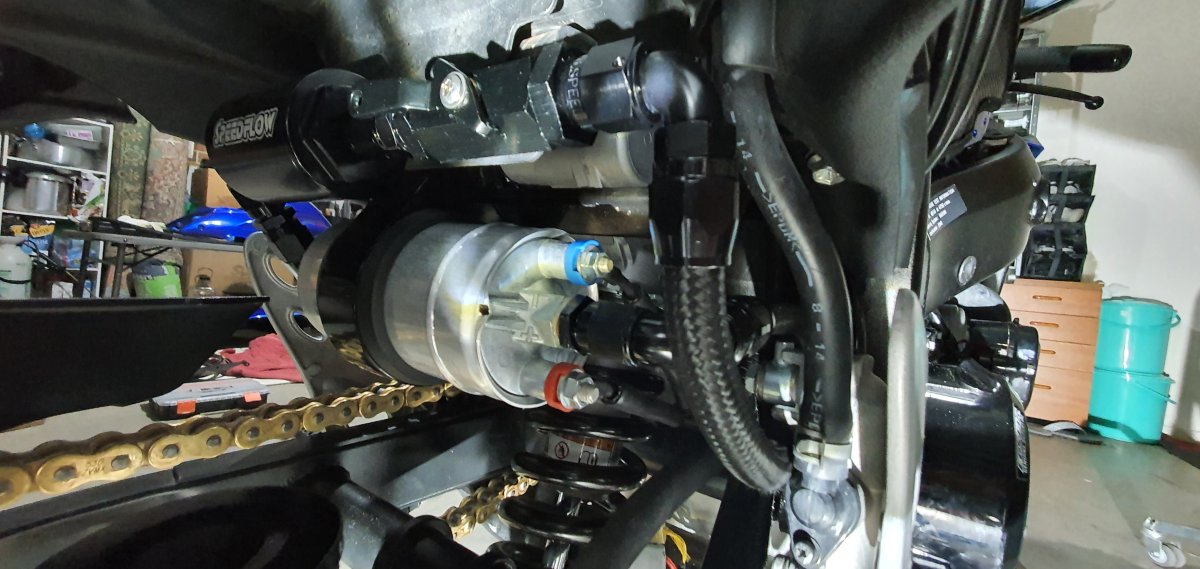

mounts fuel pump under rear shock for cooling

https://store.schnitzracing.com/rcc-turbo-fuel-pump-kit-suzuki-hayabusa/



[airborneuph]

Like this ? Still gets vapor lock on hot days (80+) when you sit in traffic .. I'm betting that the FPR and the secondary fuel rail soak up a lot of heat from the engine and radiate it into the fuel ..



[202mphbusa]

Like this ? Still gets vapor lock on hot days (80+) when you sit in traffic .. I'm betting that the FPR and the secondary fuel rail soak up a lot of heat from the engine and radiate it into the fuel ..


View attachment 1645672

my FPR is on my subframe rail



[VIPER]

My pump is located in my tail. I haven't ridden it yet in summer to heat to say if I will have problems or not, but the previous owner sure did. he didn't mention any issues.



[Deez ballz]

I've mounted mine under the battery outside and have ridden in summer 35+ degrees Celsius and never had any issues. And no check valve either.



[shade]

These are super popular and are physically the same size as the 044. They draw a touch over 9 amps at 43.5 PSI. The 044 is in the 11 amp range.
https://store.schnitzracing.com/aem-380-lph-inline-fuel-pump/

Second this. Been in my turbo bike since 2018
Loud as hell on the initial prime but rock solid



[moko]

I'm using Walbro 255 right now....I do like the aem too



[Deez ballz]

I'm using Walbro 255 right now....I do like the aem too

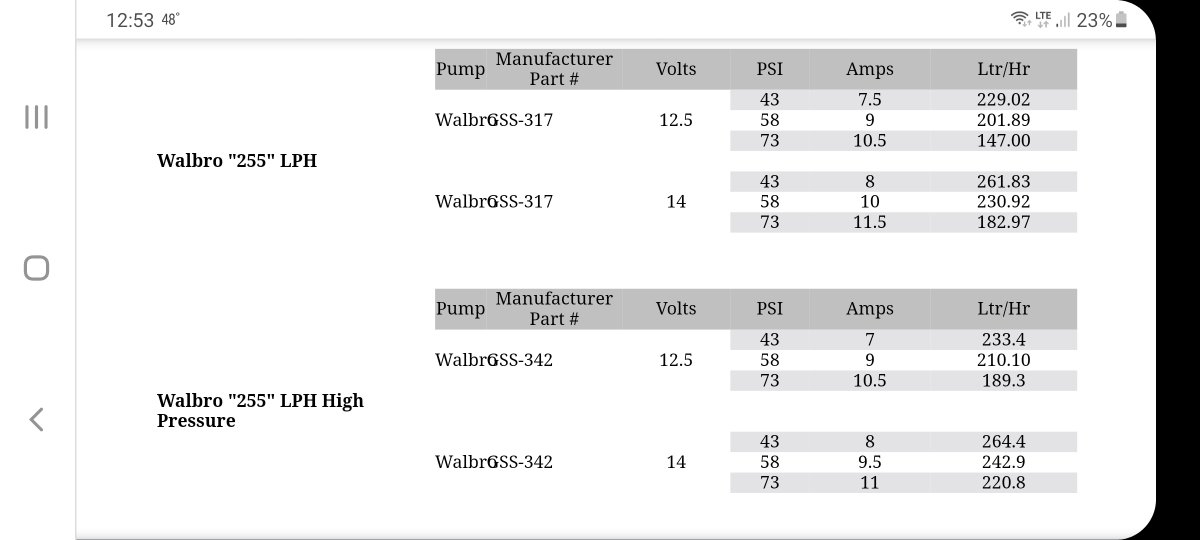

View attachment 1645684

If I do get the Walbro or Aem I don't have to retune the bike right ? Because Lph looks about the same 240ish at 43psi, it's just less draw.



[ItsDooomz]

If I do get the Walbro or Aem I don't have to retune the bike right ? Because Lph looks about the same 240ish at 43psi, it's just less draw.

Flow rate is determined by injector opening time, not fuel pump capacity. The tune-up should be identical as long as your fuel pressure is the same.



[Deez ballz]

Correct thank you sir
