ECU Editor & 3D fuel mapping

[icemansid]

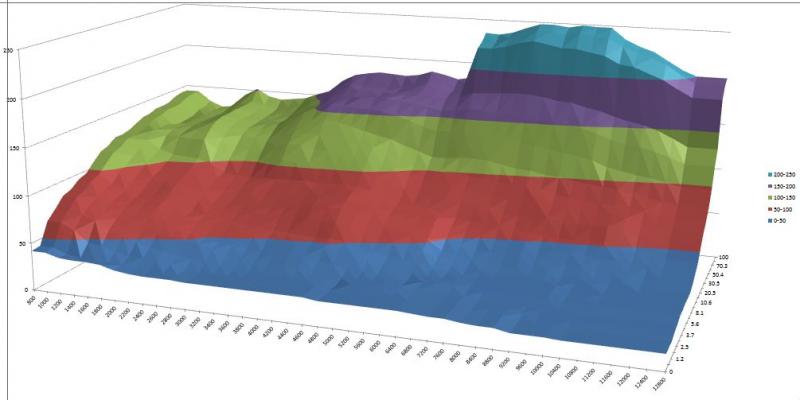

I was looking at the requests to be built into the ECU editor and one was for 3D surface charting - something that can be easily done with Excel. Below is the comparison between a basic map and a NOS map for 6000-10,300 activation. I also did the same thing with the timing maps. those are included in the spreadsheet. For those of you using ECUEditor - what do your maps look like?



[ogre]

sweet. now how about a script that will pull values from the ecu and display them on a map like this already?



[icemansid]

Yeah im not Petrik... he's the real miracle worker... although building this feature into the new ECU Editor 3.0 shouldnt be very hard. it is just a basic graph from a spreadsheet.
