Broken plastic repair

dk55belair

Registered
Joined
Jun 7, 2009
Messages
2,680
Reaction score
7
I added a new used belly pan because mine was broken. The bike is lowered and when I first got it, I bottomed her out a few times.

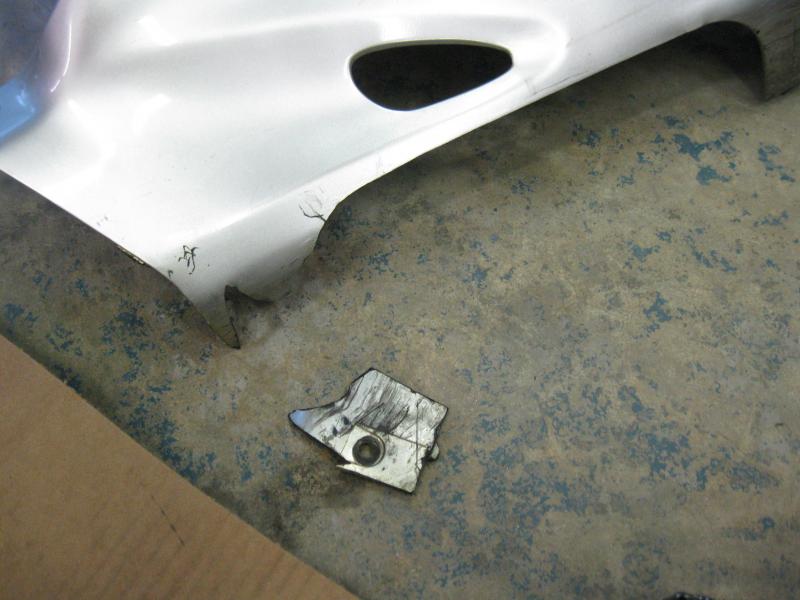

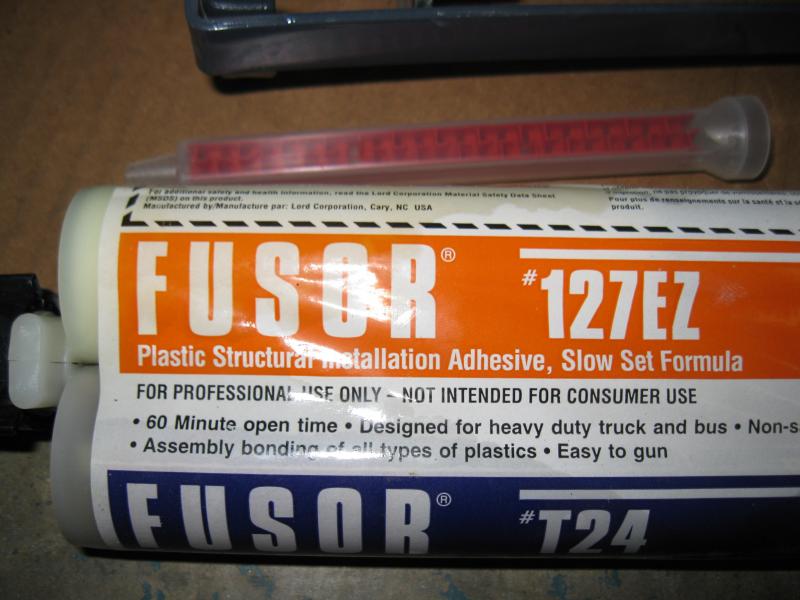

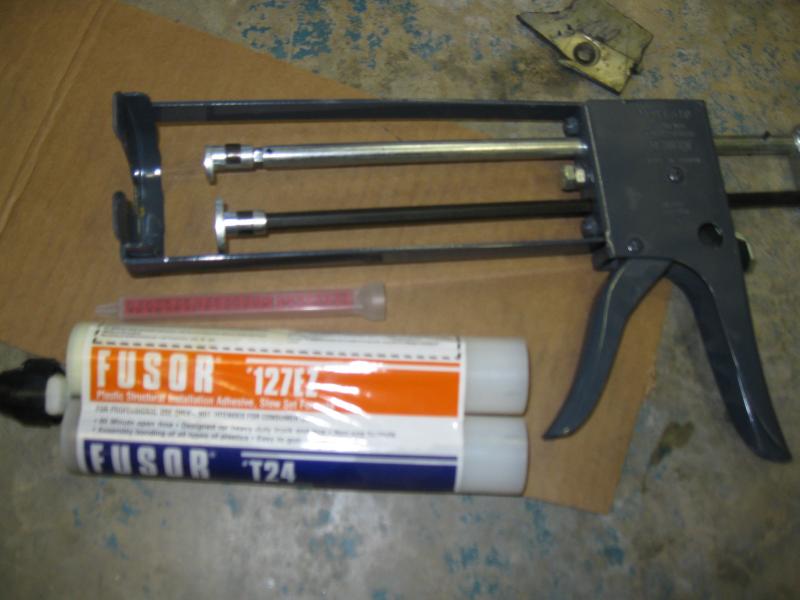

So I found a broken tab on the side fairing. If any of you do bodywork, you know about Fusor products. It requires buying or borrowing a $150 gun, and most body and paint stores sell it, but you can find it on ebay(slightly out of date, but useable) for way less money.

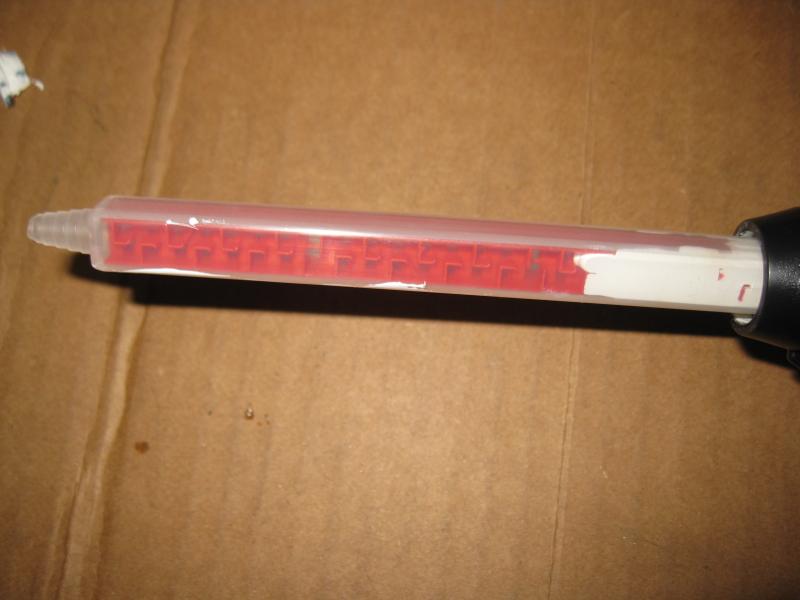

The tips mix the two parts and make a strong product when set up.

I also drained my Syn. blend oil and replaced it with Am-soil. The bike shifts like new money. I am sold on this stuff. I put in some new plugs and a fresh coat of Pledge and we are ready to ride about 1000 miles this weekend.




dk55belair

Registered
Joined
Jun 7, 2009
Messages
2,680
Reaction score
7

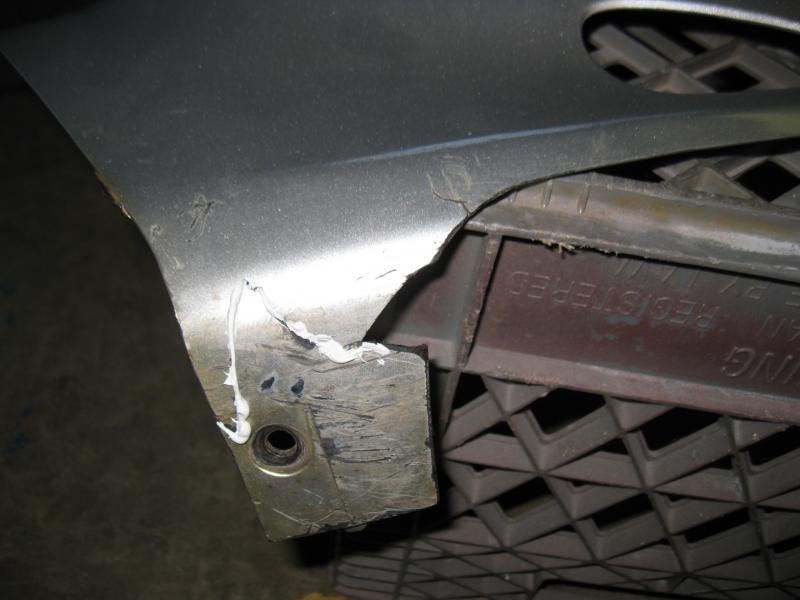

Next the special mixing tips and place the pieces together to set up.

This crap is strong as can be. Bodyshops also use the metal Fusor to attach 1/4 panels so the dont have to weld them.

I hope it helps someone else here.


No you cant borrow my gun. :rofl:






dk55belair

Registered
Joined
Jun 7, 2009
Messages
2,680
Reaction score
7
Charlie, I hope that photo wont keep me out of the military....ooops wrong thread. :rofl:

GIXERHP

ok, ok...just a wee bit Irish...
Donating Member
Joined
Jan 24, 2003
Messages
14,088
Reaction score
2,980
Doug how long does the fusor products take to set up?

dk55belair

Registered
Joined
Jun 7, 2009
Messages
2,680
Reaction score
7
John, It varies. The first time I used them to rebuild a front spoiler on a Z/34 and we bought the fast stuff. We only had like 45 seconds before it set hard as a rock.

They demo it for some shops and glue two pieces of sheet metal together and then pulled them apart, the metal ripped but it stayed glued.

GIXERHP

ok, ok...just a wee bit Irish...
Donating Member
Joined
Jan 24, 2003
Messages
14,088
Reaction score
2,980
John, It varies. The first time I used them to rebuild a front spoiler on a Z/34 and we bought the fast stuff. We only had like 45 seconds before it set hard as a rock.

They demo it for some shops and glue two pieces of sheet metal together and then pulled them apart, the metal ripped but it stayed glued.

I agree, but the fast stuff, helps when you need to repair parts in several steps it works great!

The Problem Plastics sets very quickly, so you need not to mess around!

VIPER

Formerly known as viperblackbusa.
Registered
Joined
Oct 21, 2010
Messages
4,822
Reaction score
2,785
that stuff is awesome...i used it on a wrecked f2 and it is sandable by the way!!!
