Air Cleaner Box Removal
The air cleaner box needs to be removed to access the PAIR solenoid and install PAIR reed valve blockoff plates. It is also necessary to remove the air cleaner box to access stick coils and spark plugs and to remove the engine head cover to inspect valve clearances.
Prop, hang or remove the fuel tank (see steps 1-5, https://www.hayabusa.org/forum/maintenance-do-yourself/168658-gen-2-how-remove-fuel-tank.html).
Tools:
silicone spray lube
3mm hex tool
sheets of plastic secured with a rubber band or a clean rag
Q-tip
1. Remove IAP sensor from the back of the air cleaner box. A little silicone spray lube will help to slide the rubber from the mount.

2. Disconnect the ISC valve hose and the PCV hose from the back of the air cleaner box.

3. Disconnect the PAIR hose from the right side of the air cleaner box.

4. Loosen the right duct clamp screw with a 3mm hex tool. DO NOT REMOVE THE SCREW COMPLETELY.

The duct clamp screws have spacers between the clamps which will fall out if the screws are removed completely.

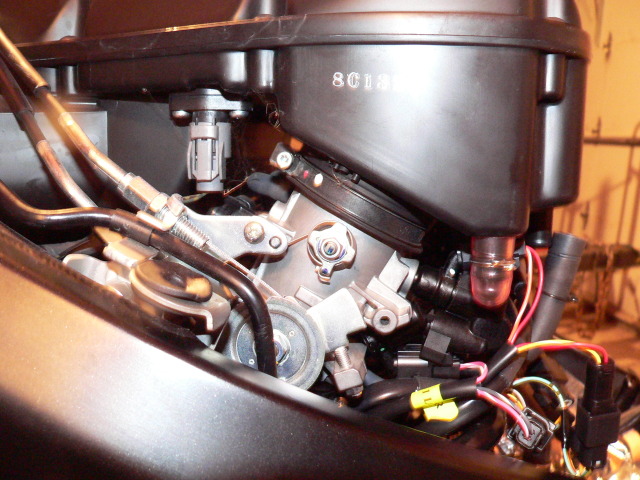

5. Loosen the left clamp screw with a 3mm hex tool. Disconnect the AIT sensor which is the grey connector lead right ahead of the left duct clamp screw.

6. Remove the air cleaner box cover (see https://www.hayabusa.org/forum/maintenance-do-yourself/168662-gen-2-air-cleaner-element-inspection.html,steps 1-3). Pull up on the ducts while pressing up on the bottom of the air cleaner box from below. After removal of the air cleaner box, cover the throttle body bores with sheets of plastic secured with a rubber band or a clean rag to prevent debris from falling in.

Installation
7. Lube the throttle body bores and the ducts with silicone lube. Push the ducts back onto the bores. Tighten the duct clamp screws on both sides (see steps 4 and 5 of this tutorial). Secure the air cleaner box lid onto the air cleaner box (seehttps://www.hayabusa.org/forum/maintenance-do-yourself/168662-gen-2-air-cleaner-element-inspection.html, step 5).
8. Reconnect the ISC and PCV hoses (see also step 2 of this tutorial). Reconnect the PAIR hose (see step 3). Mount the IAP sensor back to its bracket (see step 1).

9. Connect the IAT sensor lead (see also step 5 of this tutorial).

Lower the fuel tank and secure the fuel tank mounting bolts(see steps 10-11, https://www.hayabusa.org/forum/maintenance-do-yourself/168658-gen-2-how-remove-fuel-tank.html).
