Please post pics of your boost gauge/s setups

[Kevin Jones]

And where you acquired the clusters. Trying to get an idea of what I would like mine to look like. Mine is a gen 1 but lets see them all.



[GNBRETT]

this is custom made. pretty simple then powder coated.



[Kevin Jones]

Looks fantastic!



[GNBRETT]

Tiger Racing makes one very similar to mine...... Tiger Racing Gauge Mount Plate Suzuki GSX1300R Hayabusa (99-15) - Schnitz Racing

here is a pic of it at night....



[MR2liter]

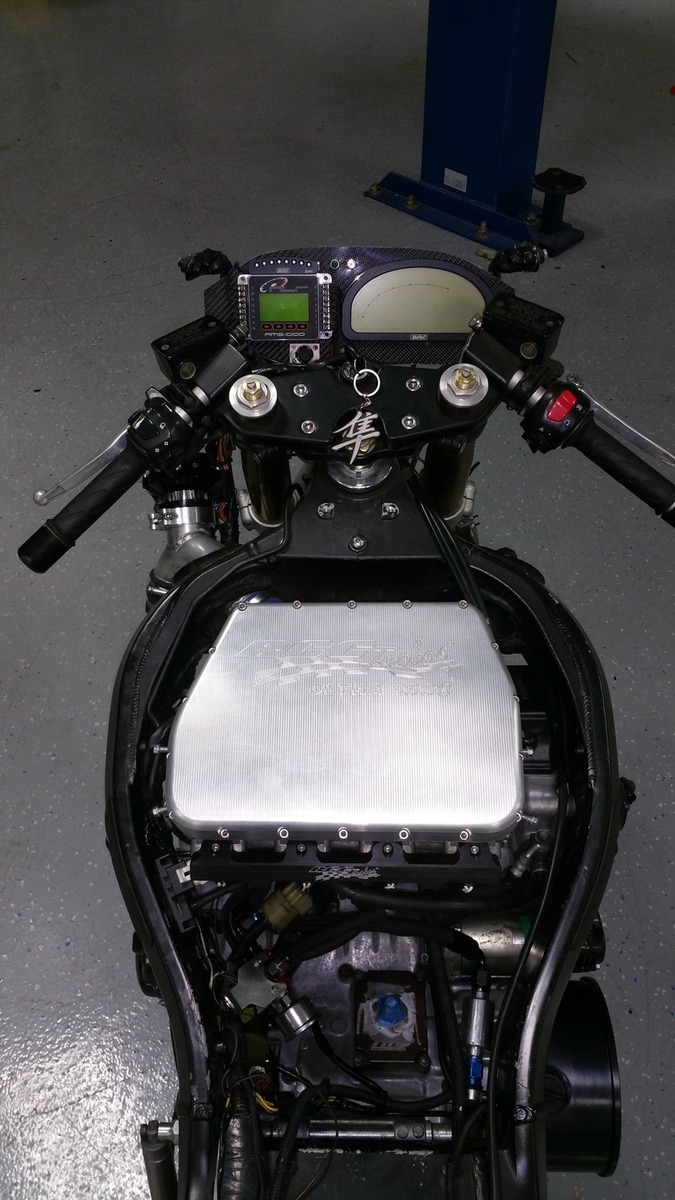

I had the tiger pod on my old setup



[Big E]

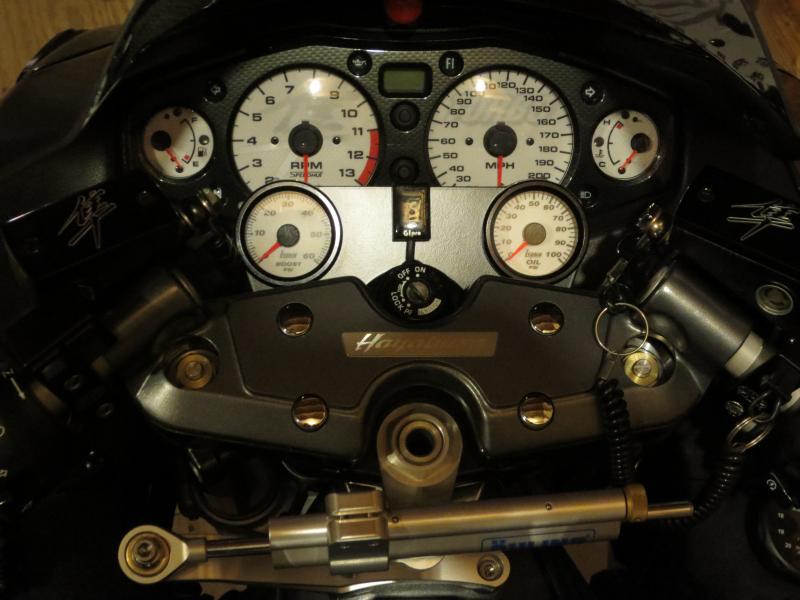

This was posted by another member.



[Kevin Jones]

So important to have an oil pressure gauge. I cant believe they aren't there on factory. Maybe they are on GEN II, but gen I with just a light? I am also floored by how much those quality boost gauges cost.



[Don Hardcastle]

GNBrett... That is sick. Great job.



[Kevin Jones]

Brett's looks like a space shuttle instead of a bike. Bad ass!



[busa2001]

I had the tiger pod on my old setup

who make or sells that carbon dash plate?



[MR2liter]

who make or sells that carbon dash plate?

just get a sheet of carbon and cut it to your liking. I'm about to redo my current one. .I'll post pics.



[GNBRETT]

thanx got some new improvements coming soon.... stay tuned.



[gsxr1216]

Heres my setup, the gauge on the right toggles from oil pressure to boost pressure when you push the button on it. You cant see it in the pic but on the right inner fairing there is another digital gauge for fuel pressure that matches the oil pressure gauge. The dynojet display shows throttle position, AFR, duty cycle, and RPM. The WEGO and dynojet can both datalog.



[812Supa]

2009 Busa, Blue LED Gauges, Autometer Boost gauge. Didn't want to block view of gauges, so windscreen mount was the best option for me.



[Shifty41]



[MR2liter]

Shifty. I love your bike. I built my gauge setup after seeing yours.



[Shifty41]

Shifty. I love your bike. I built my gauge setup after seeing yours.

Thanks man! I totally dig your bike as well. ALL BLACK FTW! LOL! You have done some things that I wanna do someday too (RCC Ultra!!!). Considering going with the Motec standalone like you and maybe the color dash but I got my MS3 ECU upgraded with bluetooth now and it is sweet.

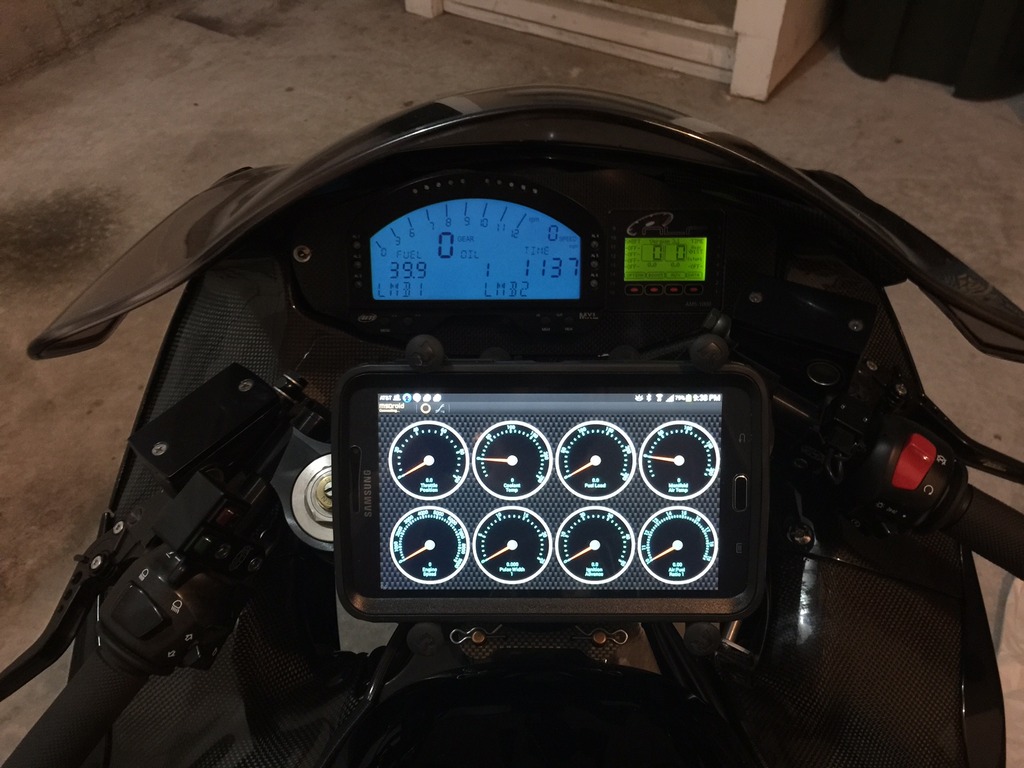

My ECU now connects to my phone or tablet (8" Galaxy Tab shown above) for detailed engine diagnostics. I can even tune from an android app on the fly





Lots of custom dashes available and you can even create your own.

Here is a pic of the Ram mount I use without the tablet attached:



Everything your phone or tablet can do is right at your fingertips with this system.



And if you don't want that big ass screen in front of you, just leave it off. The mount is pretty low pro.



[Got-Busa?]

AWESOME SETUP Shifty41!!



[Shifty41]

AWESOME SETUP Shifty41!!

Thanks man!



[oldgixxer]

Shifty thats a frickin sweet set up.
Obvious question is obvious: what battery/stator are you using to power all those electronics?
