GEN II DETAILED SMOG PUMP REMOVAL AND BLOCK OFF

[chrisjp]

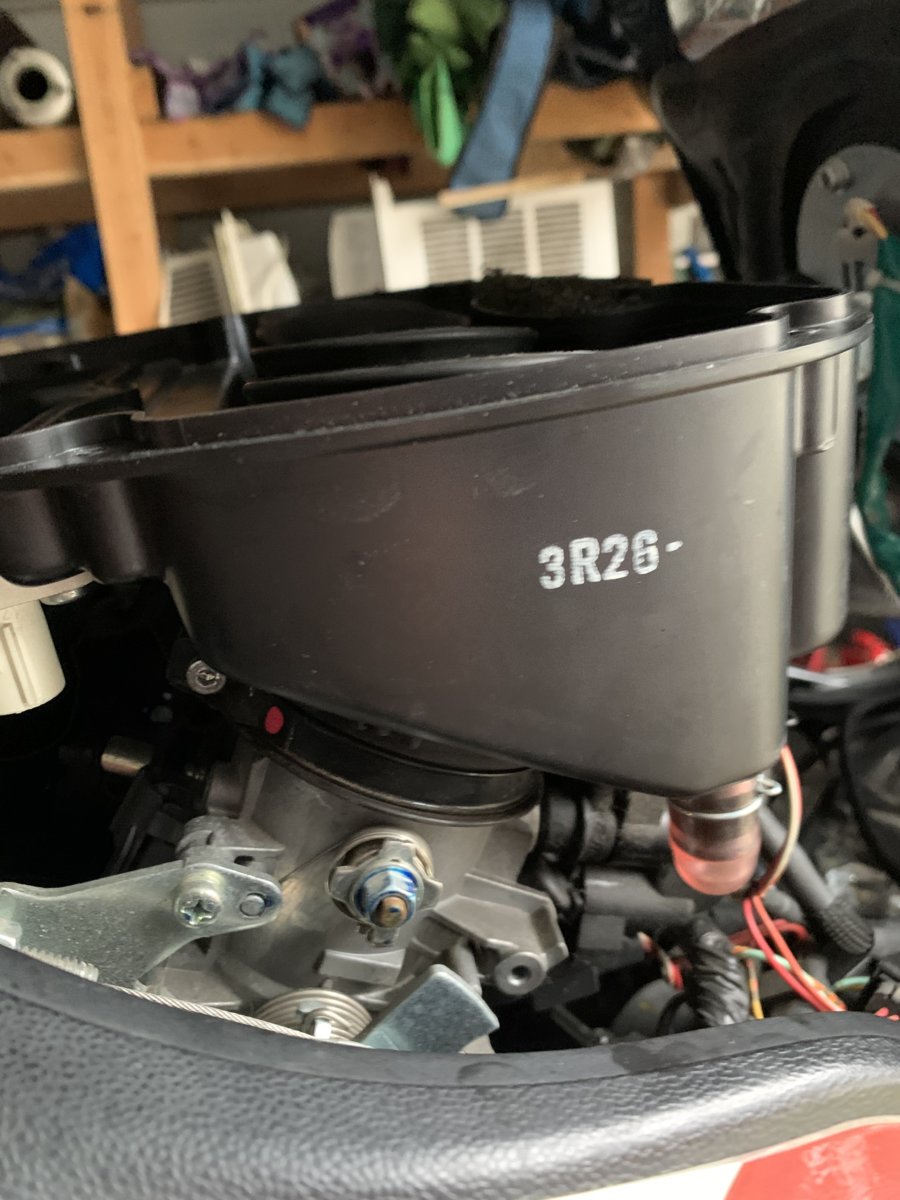

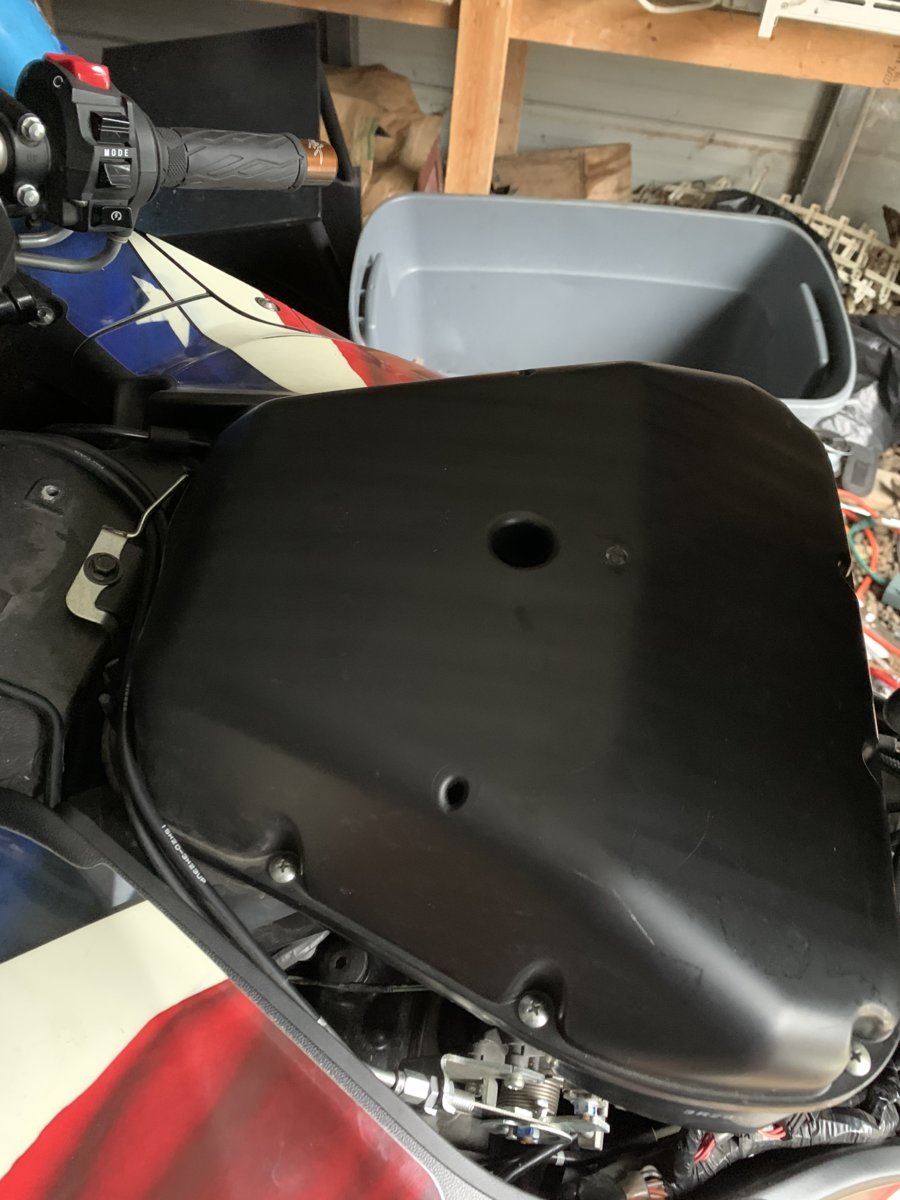

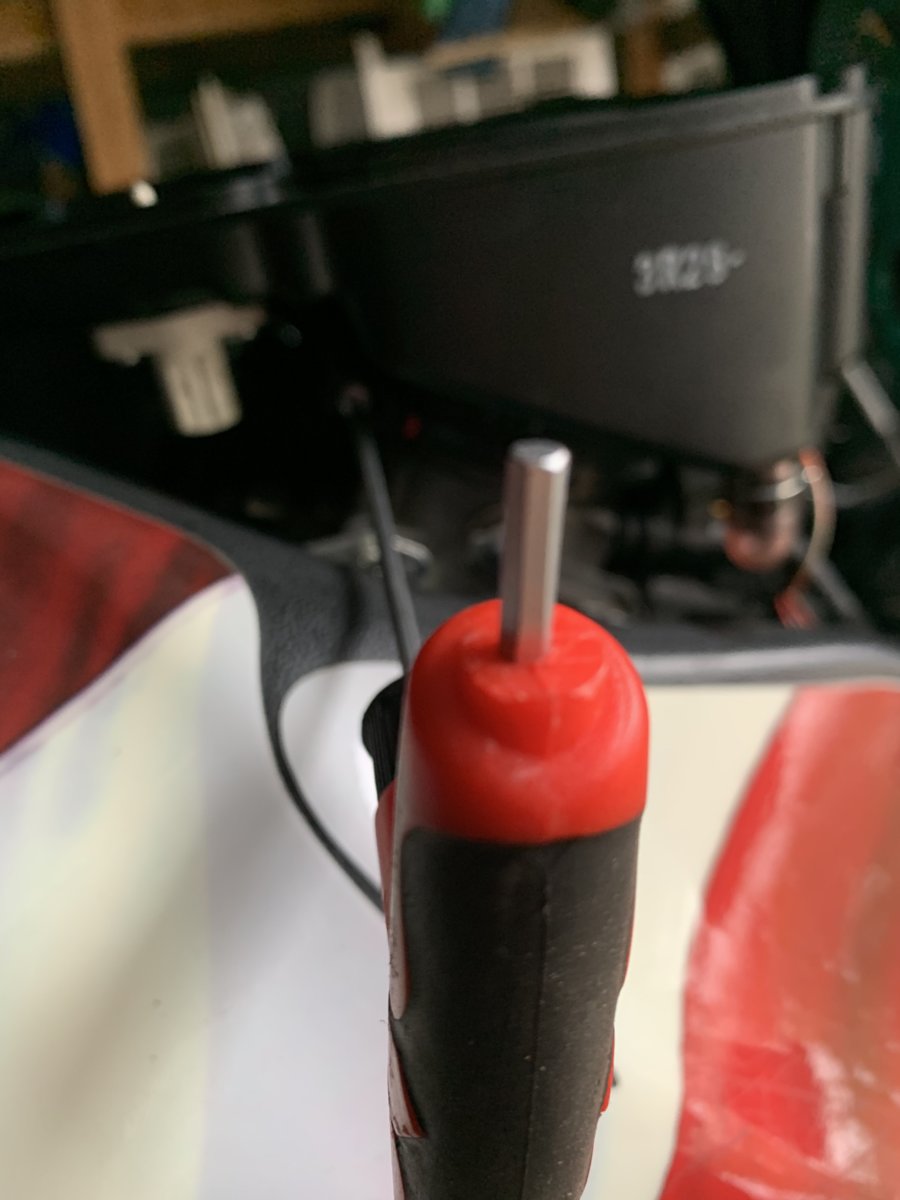

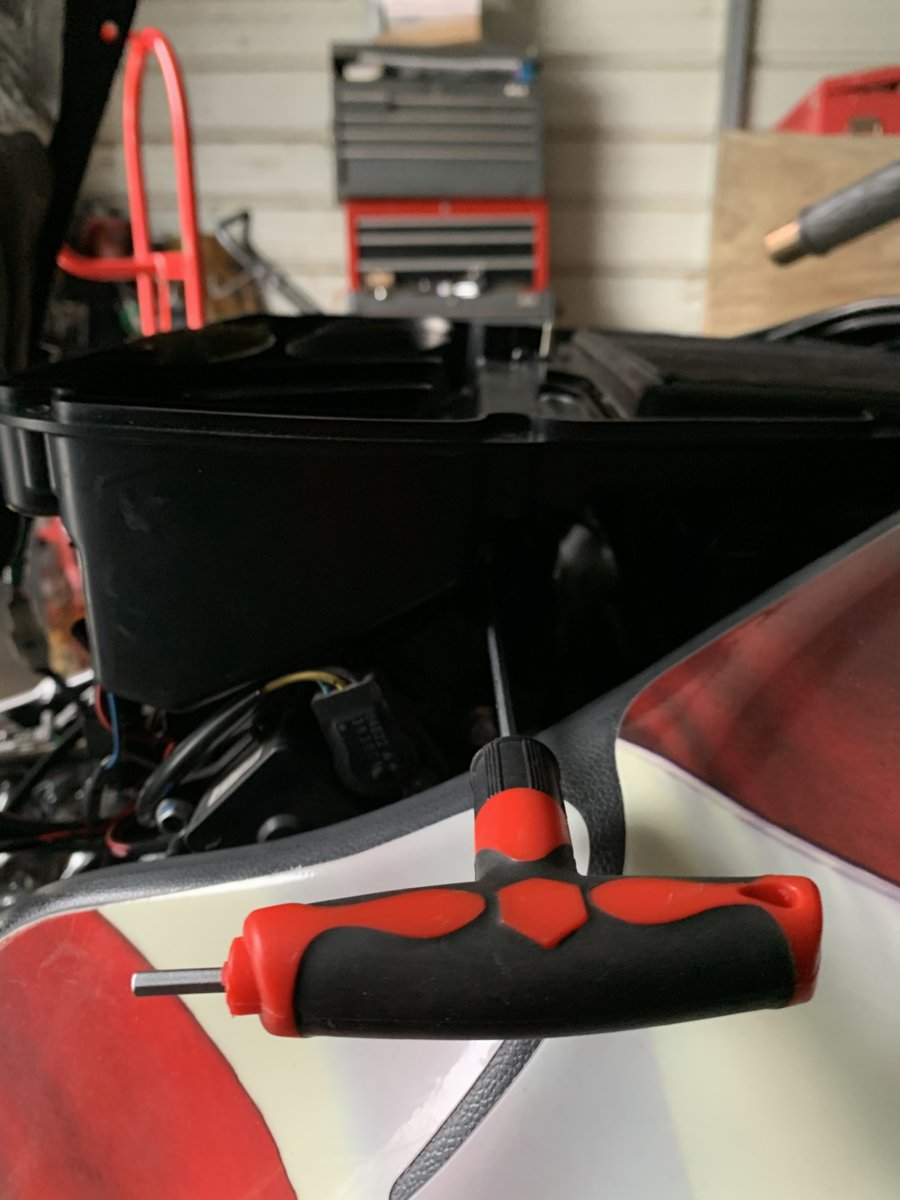

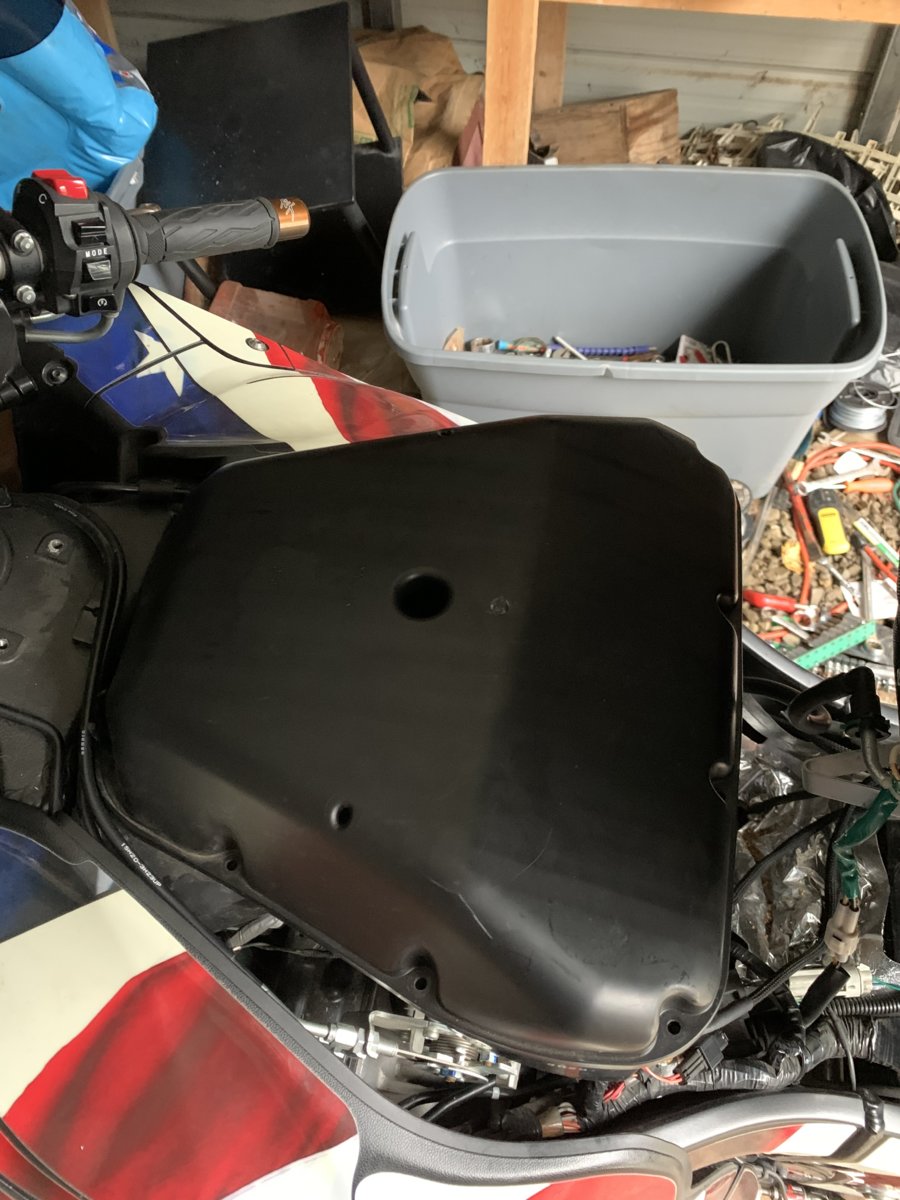

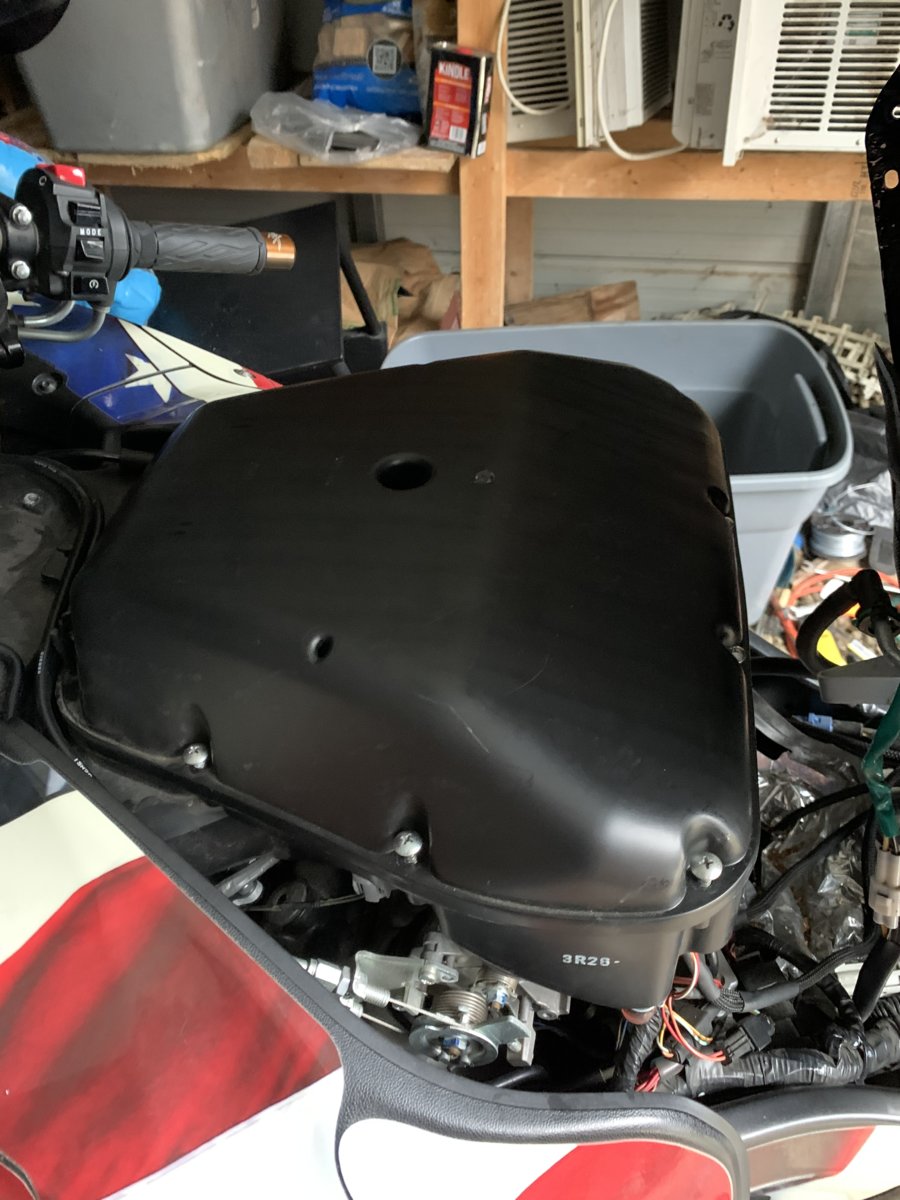

now you can reassemble the air box back onto the throttle bodies.. make sure they seat well so there is no misalignment.. then tighten back down the Allen head bolt clamp assembly...

[RedBull]

Good detailed write up . . .


This should have been a
sticky for future viewing .

Pair Valve Solenoid removal for Gen II Hayabusa | Gen 2 Busa Information

No longer is there a need to leave the octopus laying on your valve cover LOL Plug and play solution :thumbsup:

www.hayabusa.org

[chrisjp]

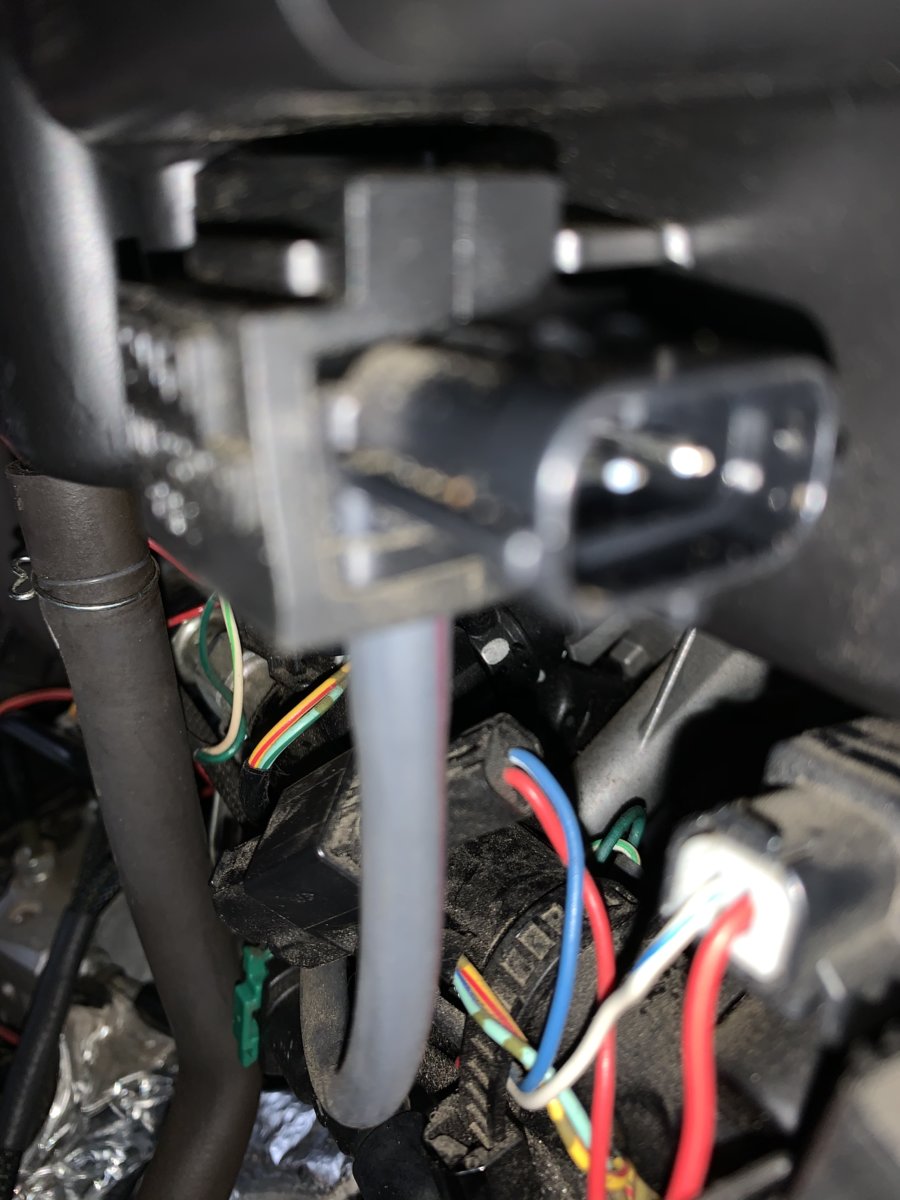

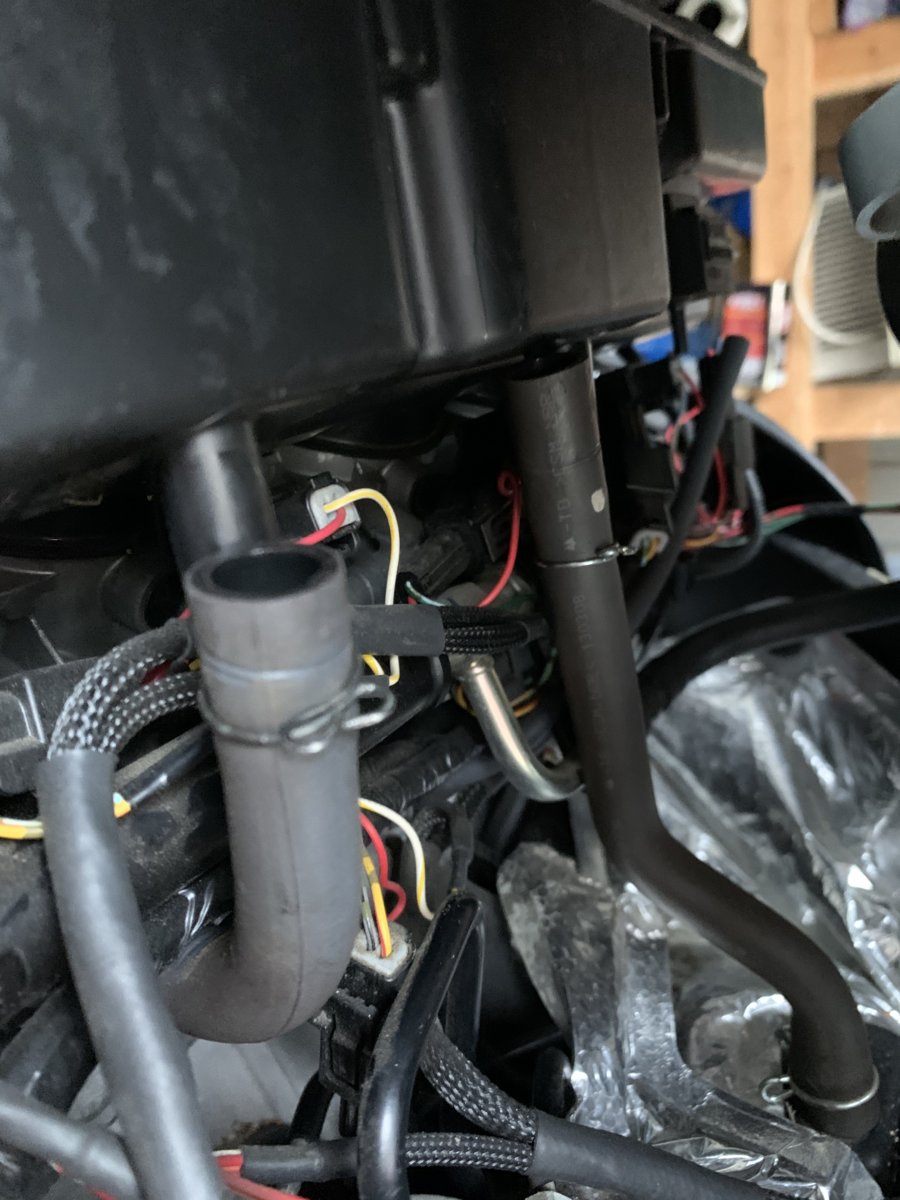

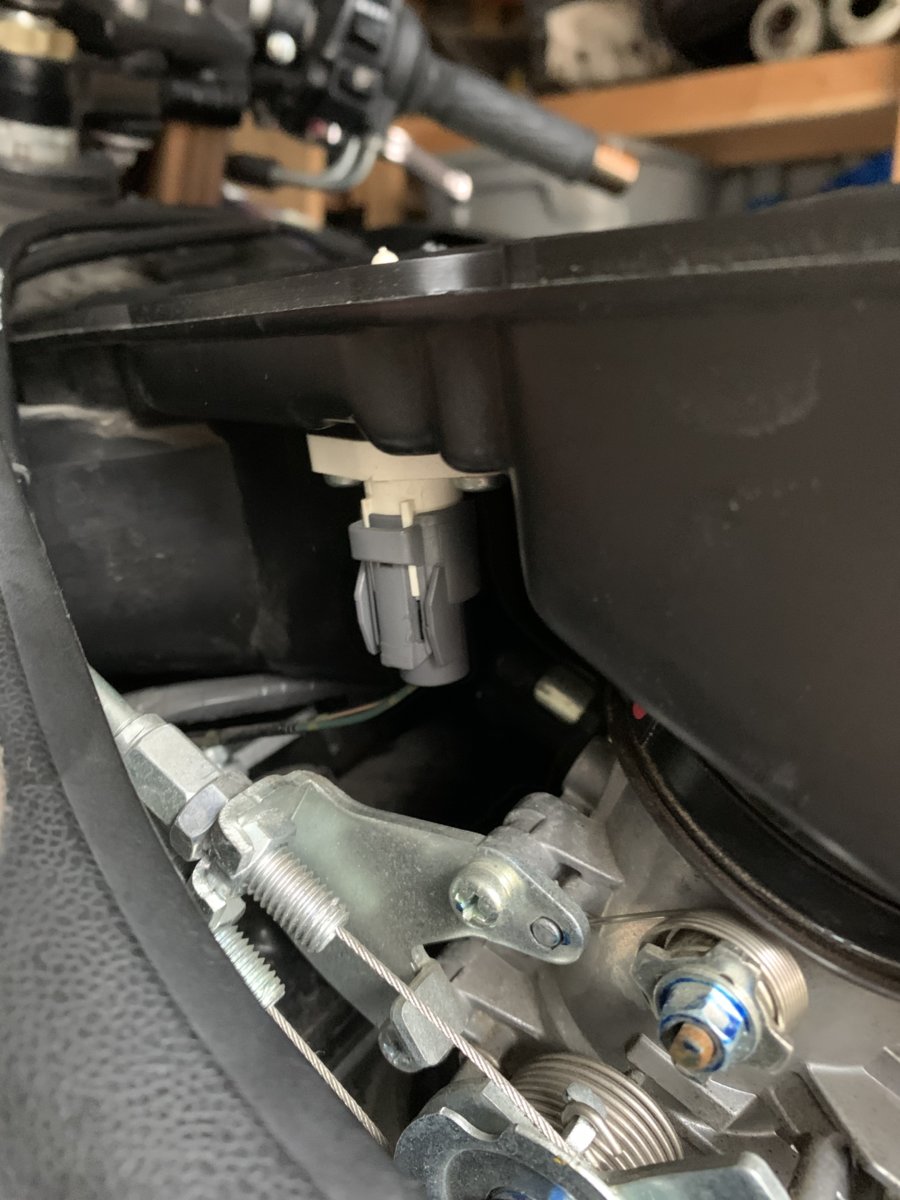

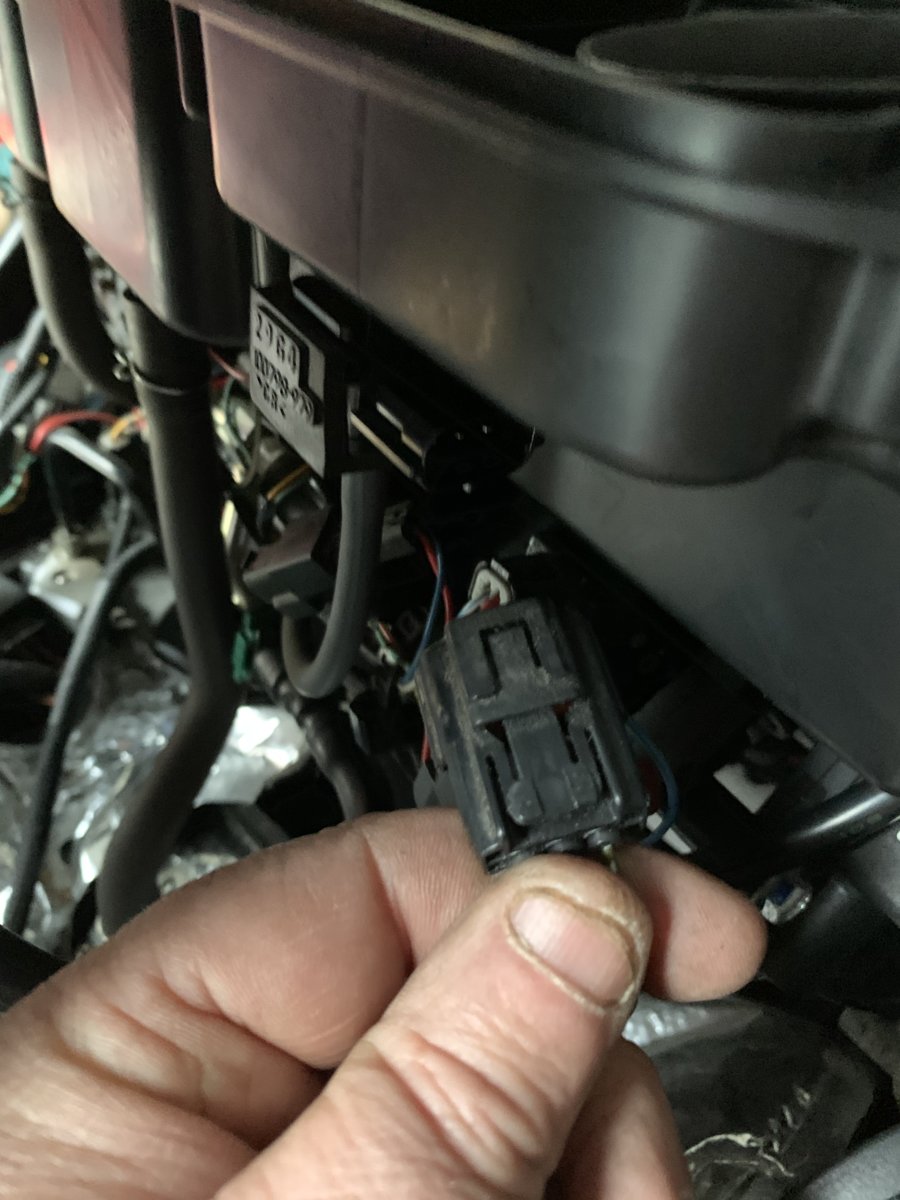

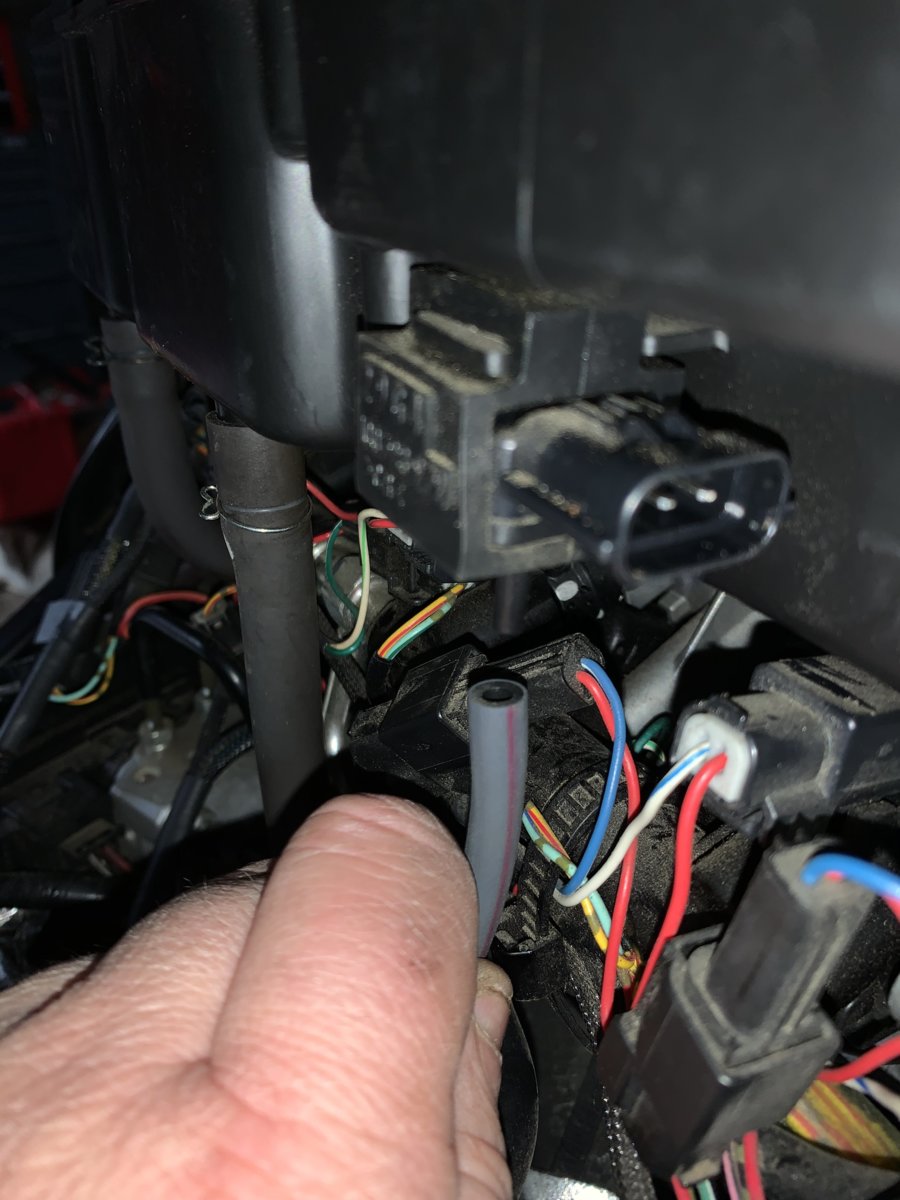

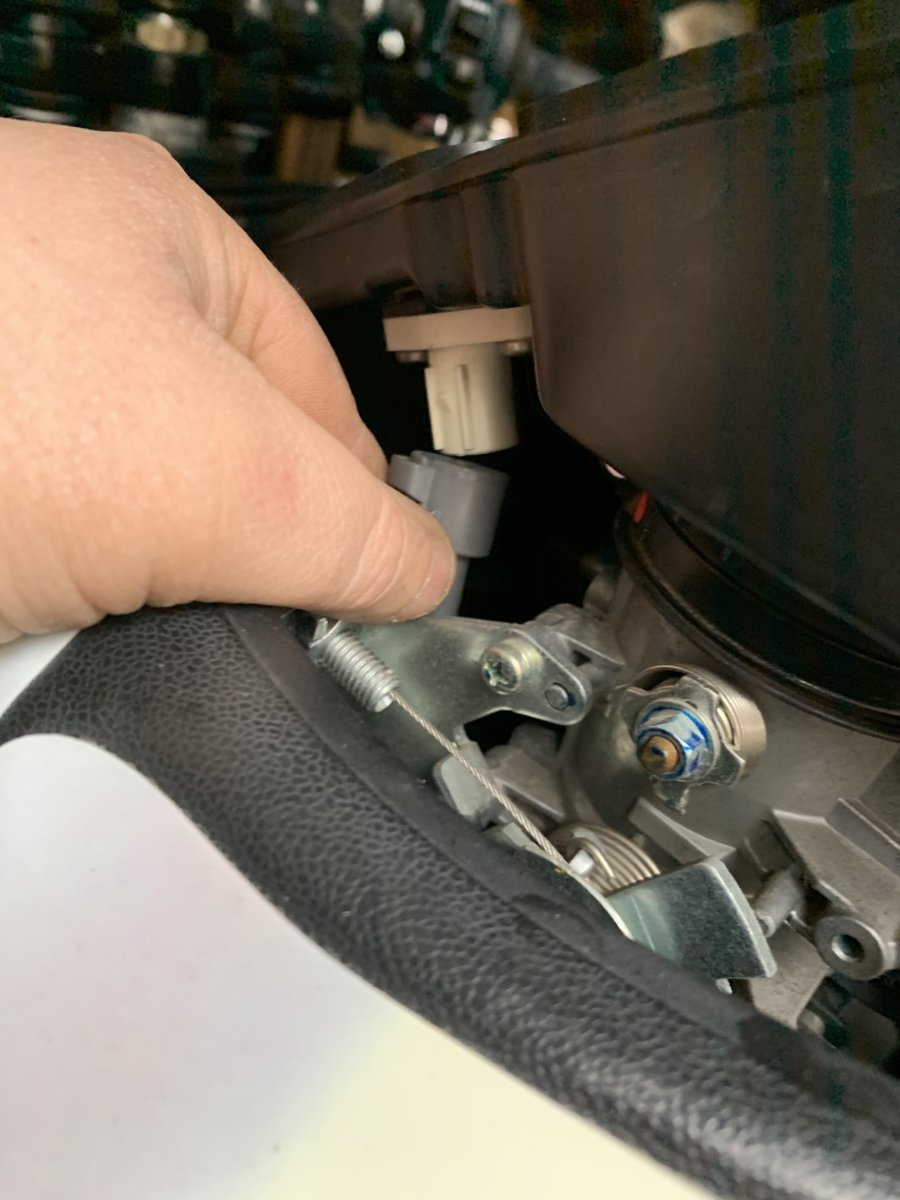

time to reconnect all the electrical connections and hoses that were from other parts of the system and not part of the smog pump.

[chrisjp]

look at all the USELESS weight you have saved and have sweet dreams of all the HP gains you will have once your system is on and possibly dyno'd or ECU flashed or power commander set up!!!

[chrisjp]

i apologize..i forgot to include how to take the bracket off.. 2 bolts 10 mm.. just use a open and closed end wrench to take the bolts off that are underneath the bracket.. little hard to manipulate but use the closed end and break loose then work with it till the bolts are loose enough to get fingers in there and unscrew them and pull the bracket.. i would do that before you put the plates on...

[Bumblebee]

I'm going to pick up a kit and do this before spring, I get a lot of popping on deceleration and this should cure that.
