Gen 2 rearsets on Gen 3??

[SS4Luck]

DroolI’d like a little more adjustability in my foot position and have been looking into the Gen 2 stuff Vortex and Driven are at the top of the list currently as I’m looking to go down/back more than I am up. I know sato makes sets for our bikes but they only allow for up adjustability.

I can’t see why bolting on a set of Gen 2 rearsets and then making my own shift rod for the QS unit wouldn’t work. I don’t have a rear brake so I’m really just focused on the left side.

Anyone done this yet? Waiting to hear back from driven but I like the looks of their TT set over the Vortex just a bit. Plus they come in Ti



[Berlin Germany]

as far as i know - no chance
the standard rear seats from gen1 / gen2 / gen3 differ, are not interchangeable.



[Brouse]

Found these on eBay ordered them in. Look to fit and decent quality but the shift linkage is way to long. Looks like it’s meant to replace the whole quick shift mechanism. Going to have to fab a short linkage to keep the quick shifter.



[Robert 0046]

Hope they fit your needs



[SS4Luck]

So Gen 3 bolt onto Gen 2 no modifications. I ordered some Vortex units and plan to make my own shift rod to accommodate the QS. We’ll see how the turn out in a week or so



[Robert 0046]

So Gen 3 bolt onto Gen 2 no modifications. I ordered some Vortex units and plan to make my own shift rod to accommodate the QS. We’ll see how the turn out in a week or so

View attachment 1665356

I hope Vortex works they go back and down and that is what i need



[SS4Luck]

I hope Vortex works they go back and down and that is what i need

That’s why I want them. I don’t see why they won’t, may take a few hardware store trips to make the QS linkage but it’s nothing that hasn’t been done before.

I also want to go GP pattern when I do this so it’ll be the time to flip the QS itself around and make sure nothing binds.



[SS4Luck]

Shout out to Chris Canan/Canan’s Customs

Gonna start messing around tonight and see what all I need to do with the linkage. Going to set everything up GP pattern.



[Dustin02]

Quickshifter won't work in GP pattern. You'll have to get the one from Woolich to replace the factory one.

https://www.woolichracing.com/products/suzuki/gsx1300r-hayabusa/2022/1365/2021-2023-gsx1300r-hayabusa-replacement-quickshifterautoblipper.aspx



[ZeePopo]

That’s why I want them. I don’t see why they won’t, may take a few hardware store trips to make the QS linkage but it’s nothing that hasn’t been done before.

I also want to go GP pattern when I do this so it’ll be the time to flip the QS itself around and make sure nothing binds.

Dynojet sells linkages in different lengths.



[Ked0607]

Following for future updates



[SS4Luck]

Following for future updates

it'll pry be Monday night before I have time to work on this, but I'm going to try to sneak a few hours of wrenching in over the weekend. Fridays are my Mondays usually so it's not too hopeful.

Dynojet sells linkages in different lengths.

On initial look, the rears linkage is much thicker than the stock one. Im thinking I may have to take the Vortex one and stick it in a lathe and turn it down and then cut some threads myself on it.



[SS4Luck]

Quickshifter won't work in GP pattern. You'll have to get the one from Woolich to replace the factory one.

https://www.woolichracing.com/products/suzuki/gsx1300r-hayabusa/2022/1365/2021-2023-gsx1300r-hayabusa-replacement-quickshifterautoblipper.aspx

Damn. I remember a while back people had said they emailed Chris Moore about it and he said it needed to be reversed. I just turned the knuckle over for an afternoon and sometimes it shifted good and sometimes it seemed to just "fall" into gear so I knew something was up lolol



[Dustin02]

Nothing that a few dollars can't fix... lol



[SS4Luck]

Nothing that a few dollars can't fix... lol

I’m starting to get tired of that being the answer to my problems



[Dustin02]

C'mon man... Don't you already have a few other toys? That's the name of the game...



[Busa Quick]

Damn. I remember a while back people had said they emailed Chris Moore about it and he said it needed to be reversed. I just turned the knuckle over for an afternoon and sometimes it shifted good and sometimes it seemed to just "fall" into gear so I knew something was up lolol

How many wires does the quick shifter switch have? If it is three wires, maybe it's just two switches. If that is the case, I wonder if you can swap two of the wires so that the switches correspond to which way the quick shifter is being pressed.

A lot of quick shifters are simply switches but not all of them. This could be figured out pretty quickly with a ohmmeter if you know how to read it.



[Ked0607]

How many wires does the quick shifter switch have? If it is three wires, maybe it's just two switches. If that is the case, I wonder if you can swap two of the wires so that the switches correspond to which way the quick shifter is being pressed.

A lot of quick shifters are simply switches but not all of them. This could be figured out pretty quickly with a ohmmeter if you know how to read it.

i said that months ago but since i have no interest i never tested it....



[TheGza]

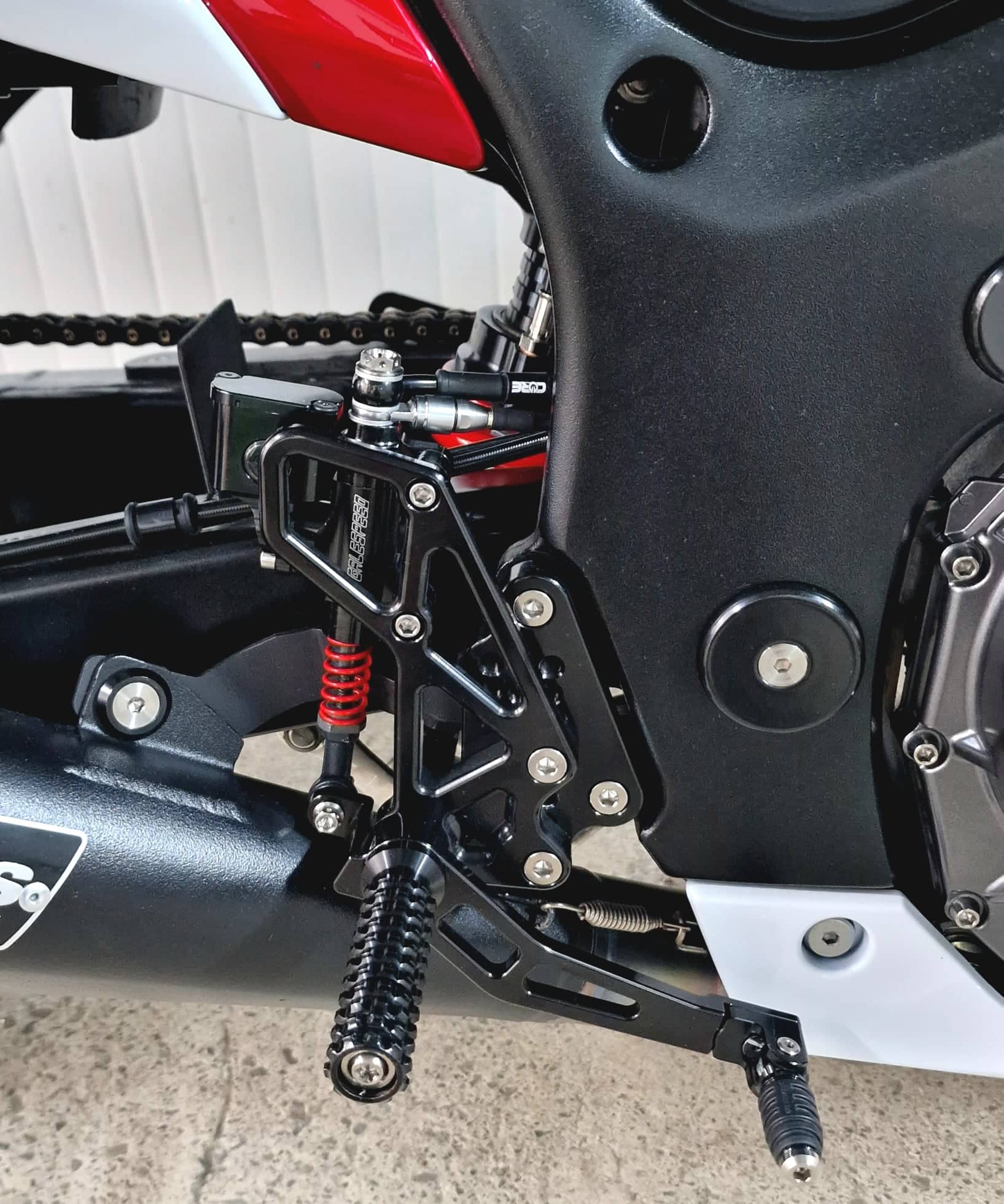

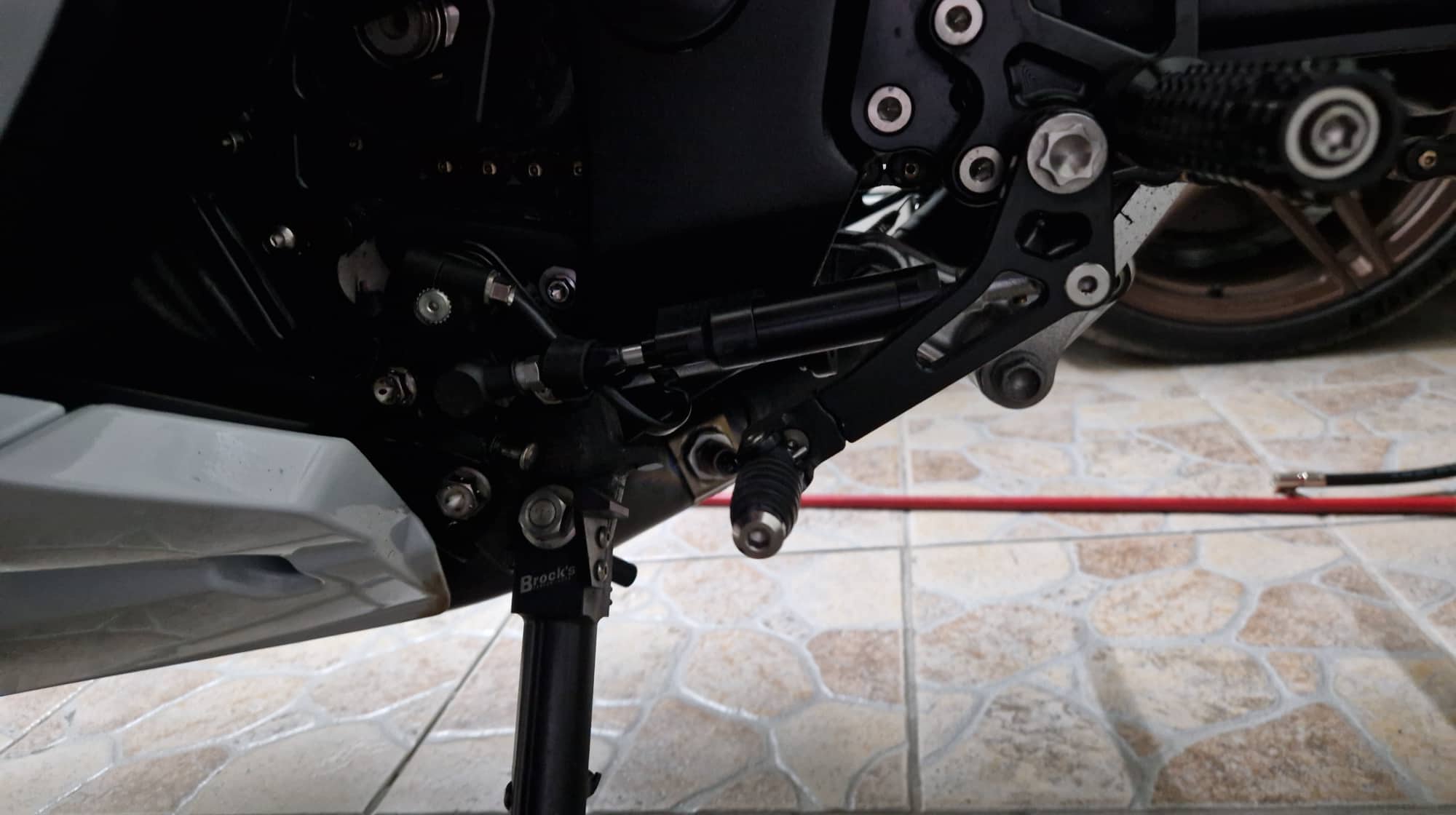

Gen 2 will work, you need to flip the quick shifter to do a GP pattern, For the shifter you will need smaller extension

I thought I posted this a while back



[SS4Luck]

Gen 2 will work, you need to flip the quick shifter to do a GP pattern, For the shifter you will need smaller extension

I thought I posted this a while back

View attachment 1665472

View attachment 1665473

View attachment 1665474

View attachment 1665475

View attachment 1665476

View attachment 1665477

View attachment 1665478

View attachment 1665479

We talked briefly about it once a whiiiiile ago, but I forgot you were the one with them

I spoke to our local electronic wizard and he said stock QS isn’t gonna like GP style and it would mostly likely blip the up shifts and not the downshifts. Once I get everything on I’ll worry about getting a woolich one.
