ECU Editor and O2 sensor

[Jakegsxr11]

I have a couple of questions regarding ECU editor, the Power Commander 5, and the O2 sensor. First off I'm wondering why I cannot see AFR on either engine monitor, ECU Editor or PC5. All I see is a 0.0 under AFR? Is this normal?

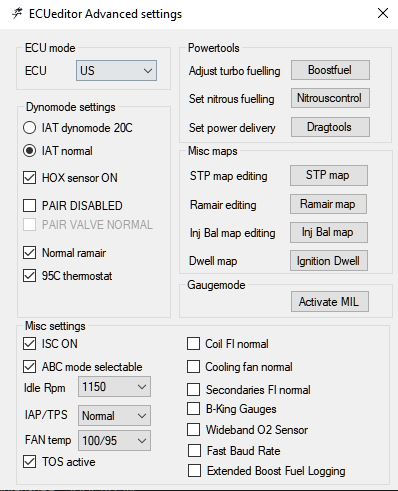

Second question is about the "HOX Sensor On" checkbock in ECU editor. Should this be checked or not with the PC 5? I only have one O2 sensor and I'm assuming it's a wideband that came with the PC 5 (the PC5 was installed when I got the bike). Along that same line should the box for "Wideband O2 Sensor" be checked in ECU editor?

I appreciate any insight you can provide. Thanks.



[Jakegsxr11]

Ok, I got the afr to read on the pc5. I needed a CAN bus terminator on the autotune module. I took an unused plug from an old PC, removed the 2 middle wires and soldered a 270 ohm resistor between the two outside wires.

I'm guessing the ECU will never read AFR since there is none directly wired to it any longer. I did remove the checkbox in ECU editor for HOX sensor and checked the wideband O2 sensor box.
