Good morning, I started a Gen 2 rear conversion on my 2000 Busa, but got sick and I am just now starting back. I tried searching to see if this has been covered, but don't know what I am doing or it isn't there. I have the Gen 2 subframe and seats but don't know what I am doing. Can anyone point me in the right direction that will show me where how to mount? Thank you very much.
Gen 2 seat on Gen 1 Busa
- Thread starter Haley246
- Start date
Mathewrussell52
Registered
Twist clockwise. It just screws in to the frame and the unthreaded part holds the seat in place.
I believe Gen 1 seats could be made to fit the 2 but don't think it works the other way but not 100 percent sure. I do know Gen 1 the bolt sides thru the frame and screws onto the seat. On the Gen 2 the frame is threaded and the unthreaded part holds the seat in place. Now I'm sure there's a way but I would think a gen1 seat would be easier to install if it goes with the lines of the Gen 2 tail.
OK Thomas...Matt and Dopey are right. The Gen II seat will tuck into the places on the Gen II subframe with the hooks on the bottom of the seat.
As the boys mentioned there are no threads in holes in your Gen I frame.
The Gen I seat has threads on hardware attached to the seat bottom.

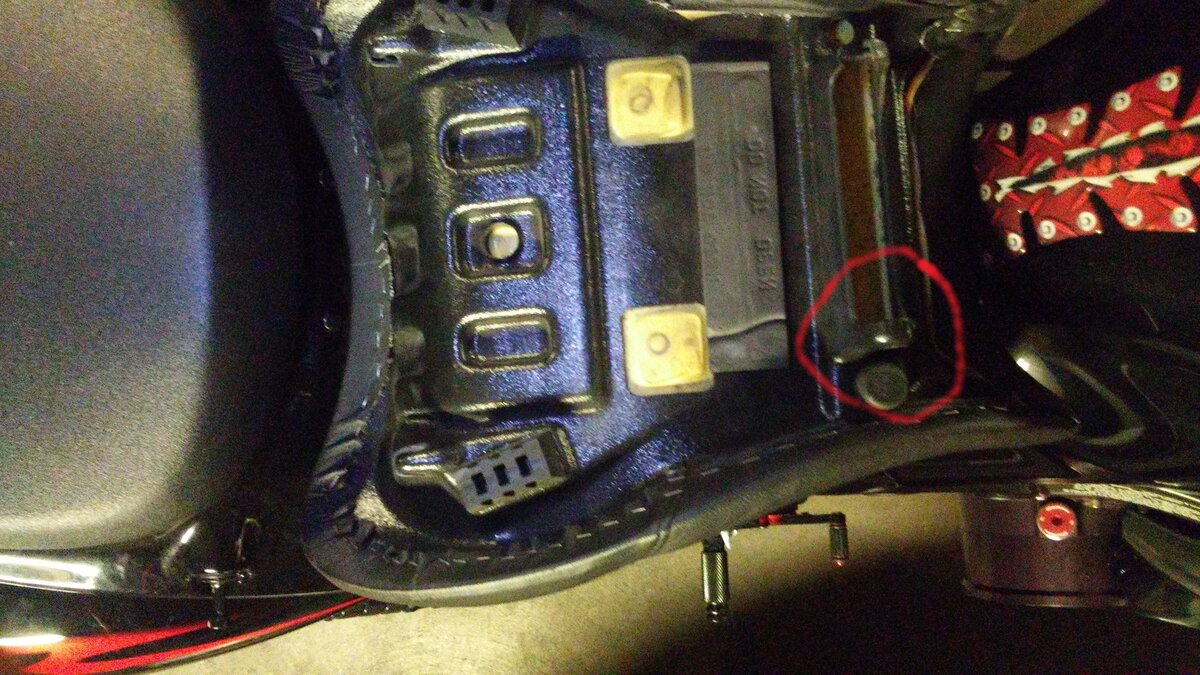

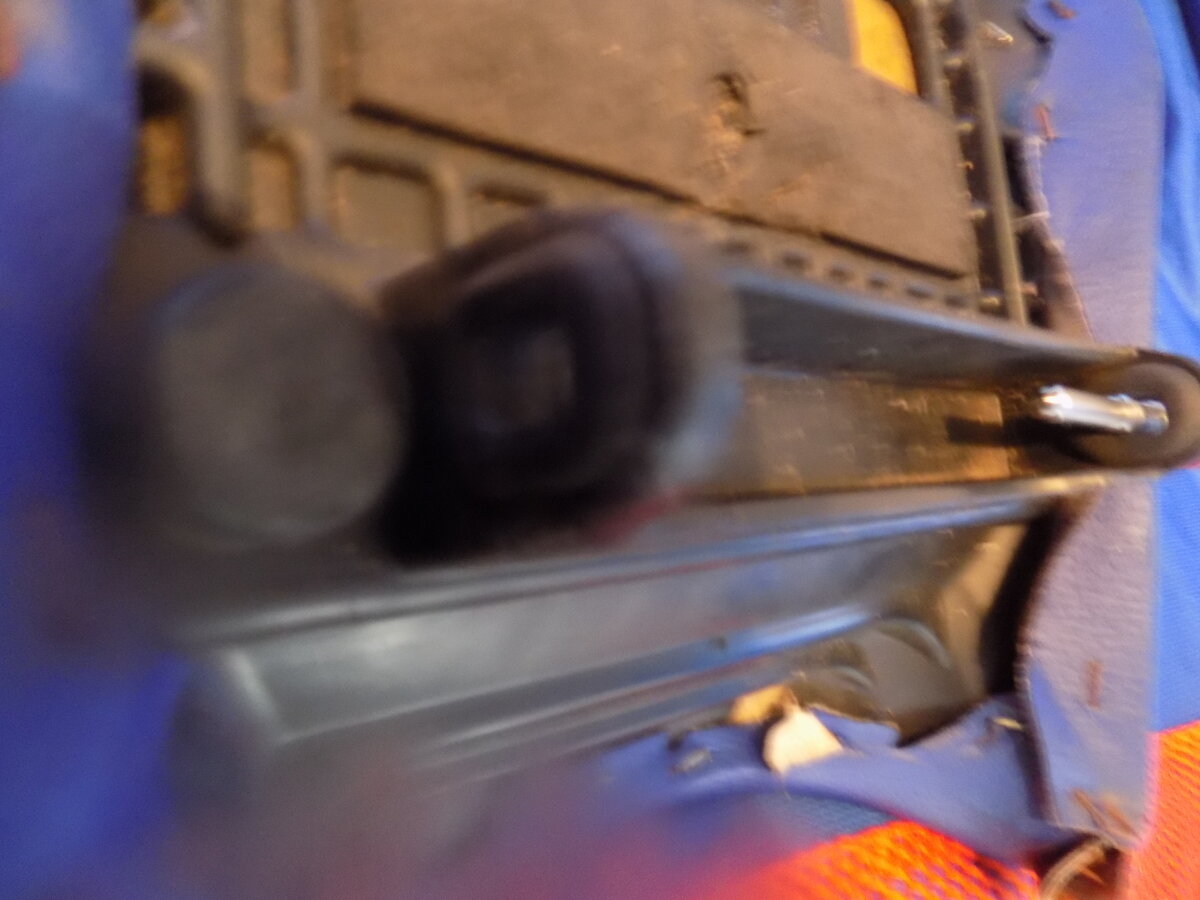

This hardware (see below) needs to be attached to the bottom of your Gen II seat. Thats option 1. Option 2 is to thread the existing holes in your Gen I frame and hope the holes line up. When you stick something like a thin screwdriver or bolt thru the frame hole,does it line up with the holes in the seat?
So those are our options Bro. Your choice. Thread the frame or attach the hardware in the area shown. If you want the hardware in the mail,let me know.
If you need a hand idea wise on how to line it up,just holla,I've got an' idea.
Rubb.
As the boys mentioned there are no threads in holes in your Gen I frame.
The Gen I seat has threads on hardware attached to the seat bottom.
This hardware (see below) needs to be attached to the bottom of your Gen II seat. Thats option 1. Option 2 is to thread the existing holes in your Gen I frame and hope the holes line up. When you stick something like a thin screwdriver or bolt thru the frame hole,does it line up with the holes in the seat?
So those are our options Bro. Your choice. Thread the frame or attach the hardware in the area shown. If you want the hardware in the mail,let me know.
If you need a hand idea wise on how to line it up,just holla,I've got an' idea.
Rubb.
Mathewrussell52
Registered

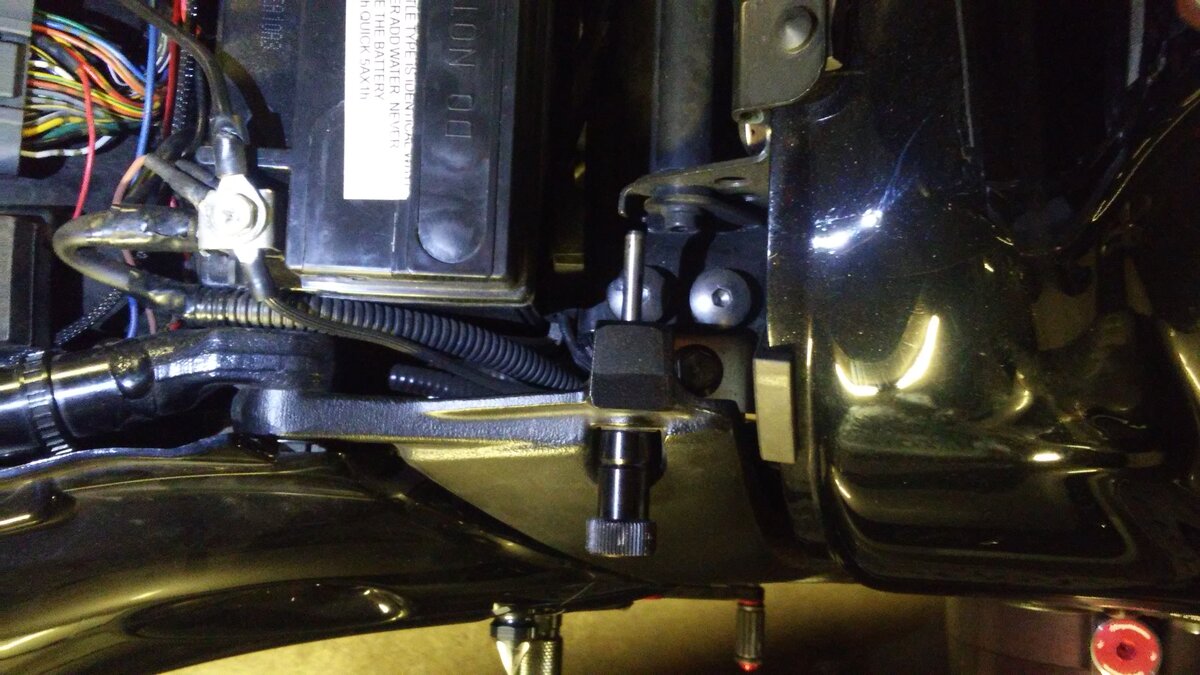

Didn’t look up size but I run something like this on my gen2 I drilled out the threads.
Forgot about those Matt,good deal.(smart
) I use these hand tighten/loosen bolts with Kanji heads.Rubb.
Rubb are yours threaded or push pin? These are the seat bolts I have so I have to have threads. I checked and my seat holes will line up with my seat , so if I knew what size the threads are I could try to put threads in the frame. Rubb if I get some like you have will they give me +100 h/p? lol... Thanks all
Guaranteed .000000000000001 performance upgrade.
Mine are threaded (Gen II) Your frame hole are not.
Somebody,if I don't get to it first,I'm sure will measure a bolt and tell you what tap you need.
If you want to save yourself the hassle lets go with @Mathewrussell52 idea and order them from Amazon. They look cool and the Busa seat comes off a lot at times...plus they look cool, come in blue to match yer ride. Maybe he (Matt) can tell us what length to order.
If you want those,I will take the money from your Paypal donation fund,order them up and have them shipped directly to you.
Your choice.
Rubb.
Let me see if I can tap and make it work. I am kinda disappointed in the non-performance upgrade lol, but then again my speedometer has 220 mph on it so it must be 35-40 mph faster than yours ( jk bro) thanks again to all of you guys Its a honor to be part of such a great group
Berlin Germany
Registered
any amazon ordering number available? or a direkt link ?
i tried to find at amazon by keywords "quick release pin" but no chance to find
Just for you Frank,'cause I love ya dear.
In your German to English dictionary you may want to to switch out dear(s) to Bro's,Dude's or Bastids...for your post's, just sayin'.
Busa seat pins
Rubb.
Berlin Germany
Registered
@rubbersidedown
kanadian amazon - maaaaaaaaaaaaaaaaan
i tried to find at british amazon .
thx a lot 4 this ,
i guess, the .25" dia, could fit into the thread and length of 1.25" ? might be enough
- hmmmmmmmmmmmmmmmmmmm
price with 29.42 cdn$ per piece sounds expensive only for testing
even the course is nice to us : 1 CAD = 0,6395 EUR ==> 18.50 € per piece
plus shipping to EU - damn expensive a bit, i guess
kanadian amazon - maaaaaaaaaaaaaaaaan
i tried to find at british amazon .
thx a lot 4 this ,
i guess, the .25" dia, could fit into the thread and length of 1.25" ? might be enough
- hmmmmmmmmmmmmmmmmmmm
price with 29.42 cdn$ per piece sounds expensive only for testing
even the course is nice to us : 1 CAD = 0,6395 EUR ==> 18.50 € per piece
plus shipping to EU - damn expensive a bit, i guess
Member @Mathewrussell52 said he just drilled his threads out.Guess that allowed a larger diameter pin.
30$ OUCH.
Rubb.
Mr Brown
Registered
304 Stainless Steel Quick-Release Pin, Plain Finish, Push Button, 0.25 Diameter, 2.00 Usable Length by Monroe : Amazon.co.uk: Business, Industry & Science
304 Stainless Steel Quick-Release Pin, Plain Finish, Push Button, 0.25 Diameter, 2.00 Usable Length by Monroe : Amazon.co.uk: Business, Industry & Science
www.amazon.co.uk
Mr Brown
Registered
He asked for them on UK Amazon, so there it is....
Yer just full of fun stuff and sunshine this morning aren't ya.
Please,nobody ask Mr.Brown anything today...
Do so at your own risk. He's already got me doing this...
With my question. Love it.
Rubb.
Mathewrussell52
Registered
Ones I bought were 5/16. Believe that’s thread size it’s not a perfect fix. I bought them to long believe 3.5in they will back out a little the perfect one would be 2 inches and the little balls that pop out would be one inch in. Haven’t looked that hard it works for me I did it so I can pull seat and pop tank quickly.Member @Mathewrussell52 said he just drilled his threads out.Guess that allowed a larger diameter pin.
30$ OUCH.
Rubb.
