StreetShark's Hayabusa

[Quiksilver]

And I wouldn’t even call these high quality photos. I almost didn’t even post them since they were phone pics haha. I’m really happy with the look and quality of the clamp.

I suppose i just have low standards ...



[Falkonworks]

Got caught at the car show today



[RedBull]

Leathers opinions please | Random Thoughts

What are your thoughts on these? http://www.motorcyclecloseouts.com/sport/leather+motorcycle+suits/teknic_chicane+2-piece+suit Need some new leathers as my horizons have expanded a little.These seem like a race horse deal if they are of good quality.

www.hayabusa.org



[Falkonworks]

I've been gone for a while....

Blew my motor last August and the bike has been down since.

I was asked to display my bike at Mama Tried in February even though it was not in running condition. I got the BST on the bike and all reassembled for the show.

My bike has been sitting since, until in the last two weeks I have swapped a new stock engine into the bike and Brocks CT Single.

I have started working on a bracket design for the exhaust since I no longer have the passenger foot pegs.

And I have finally started working on the real design for my key delete for the tail/trunk latch. I have designed a piece is a direct drop in replacement of the lock cylinder, and it reuses the OEM cable bracket and the retaining clip that holds everything together. It is a simple twist knob that will release the hump/passenger seat.

I currently have an updated knob design running in my printer right now as I did not find the knurling on the original test piece to have enough grip.

My plan once I have everything operating and looking the way I like will be to have this piece machined from aluminum for a nice finish and longevity over the 3D print.



[LC4CARL]

Super cool!



[BigBSBusa]

Always enjoy seeing pics of the work you have done!



[ROADTOAD1340]

Are you running a rear BST as well now ? Bike is looking quick at that show , despite engine .



[ROADTOAD1340]

I see you running the stock shocker , thought you would of already had one of these ( pic below ) from DME for your beast . My mate scored one of their air race shock from them , loves it , says its absolutely the best .

Penske Triple Adjustable Piggy Back Shock - DME Racing

The choice for pro racers and serious track day riders, the 8987 series is the most versatile and top-performing motorcycle shock. Shocks come with a Standard Spring, Titanium Springs are available, please call for pricing. **All shocks are hand built, so please allow up to 14 days for delivery.**

dmeracing.com



[Falkonworks]

Are you running a rear BST as well now ? Bike is looking quick at that show , despite engine .

No not yet. I got the front one for R&D for some ideas I had that ended up not going anywhere. I have considered even getting rid of the BST and going with Core Moto even though I dont particularly like the company. I think some raw machined and clear anodized wheels would look cool on my bike.

I see you running the stock shocker , thought you would of already had one of these ( pic below ) from DME for your beast . My mate scored one of their air race shock from them , loves it , says its absolutely the best .

Penske Triple Adjustable Piggy Back Shock - DME Racing

The choice for pro racers and serious track day riders, the 8987 series is the most versatile and top-performing motorcycle shock. Shocks come with a Standard Spring, Titanium Springs are available, please call for pricing. **All shocks are hand built, so please allow up to 14 days for delivery.**

dmeracing.com

I want one of those as well but just haven't gotten around to it yet



[Falkonworks]

Finally got around to making some lightning weave handlebars, and I will be installing them along with the Unit 5 clip ons. I have plans to swap the Unit 5 parts for the new Alif clamp eventually, but this setup will do for now. I've been sitting on this material for almost a year now. I think it looks really cool.



[Falkonworks]

Prototype 2 of my lock cylinder delete is a success. I tweaked my original 3D printed design and had it machined from 6061. I added 2 ceramic bearings for the shaft to rotate within, and it operates very smoothly. I will be getting one more prototype to show surface finish of the final production pieces, and I will opening up a group buy for these. The production pieces will be bead blasted and anodized black.

They have been confirmed to fit Gen 2 and 3 Hayabusa so far. Waiting on confirmation for Gen 1, and then will be testing GSX-R as well.



[Falkonworks]

I finally was able to get a mold produced and pull a real part out for my first grip design.

The plan will be to produce these in black, but I did not have the correct pigment for this rubber on hand so I mixed up some grey instead. Firmness is very similar to that of the OEM Hayabusa grips. I kind of like the grey so I may offer grey but a darker version, and also black when it’s all said and done.



[Falkonworks]

Another current project,

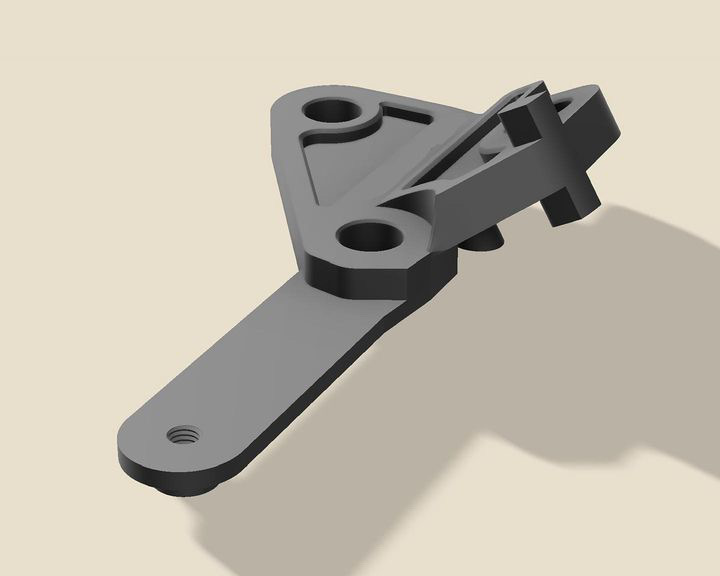

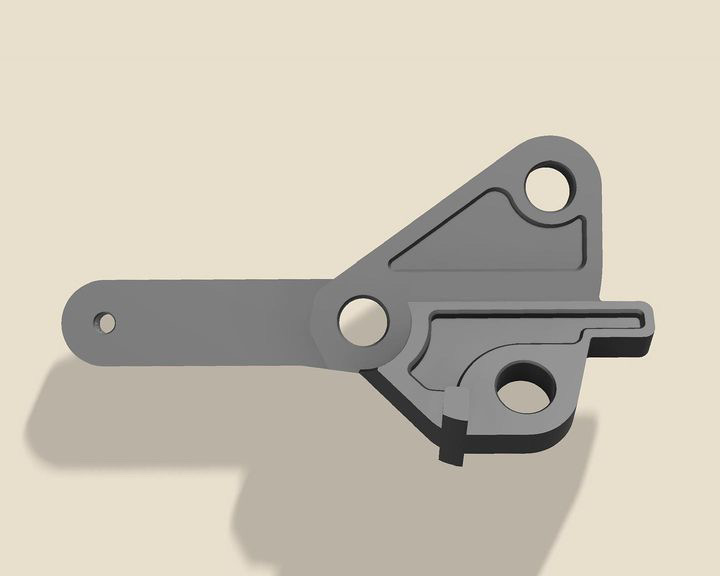

This time I’m working on a kickstand mount replacement that will be machined from 6061.

What I’m showing here in this post is the base geometry to align everything. I will be making a few slight changes to the swing of the stand and the angle that it kicks out to allow our bikes to more safely sit on the stand, especially after lowering. I will also be removing extra material after running some simulations.

The final version will likely drop roughly 10-12oz.



[Dustin02]

Another current project,

This time I’m working on a kickstand mount replacement that will be machined from 6061.

What I’m showing here in this post is the base geometry to align everything. I will be making a few slight changes to the swing of the stand and the angle that it kicks out to allow our bikes to more safely sit on the stand, especially after lowering. I will also be removing extra material after running some simulations.

The final version will likely drop roughly 10-12oz.

View attachment 1672539

View attachment 1672540

View attachment 1672541

Sign me up man! I also just got onto your Instagram page. Do you have a time frame of when you'll be releasing those carbon fiber fuel tank brackets?



[Falkonworks]

Sign me up man! I also just got onto your Instagram page. Do you have a time frame of when you'll be releasing those carbon fiber fuel tank brackets?

I have a few projects I’m getting out of the way before I start on the brackets again. Early 2024 I would say. Last sample for the lock cylinder delete will be here tomorrow for test fitment and I’ll be doing a group buy for the first run after that.



[Falkonworks]

Working on a few more things



[Falkonworks]

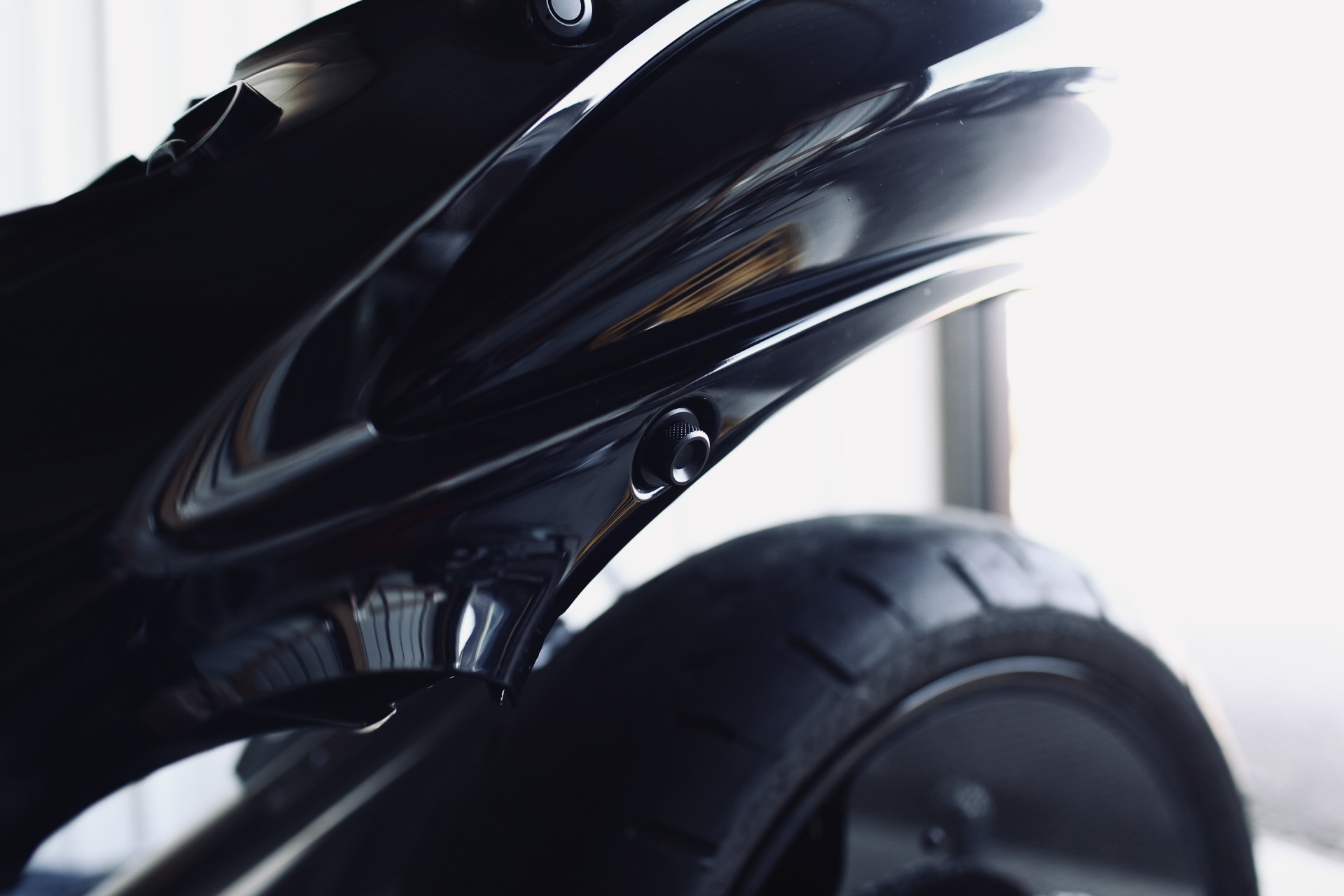

Getting close with the lock cylinder deletes. Clearing up some issues with production but here’s a good representation of how the final pieces will look



[Bumblebee]

Getting close with the lock cylinder deletes. Clearing up some issues with production but here’s a good representation of how the final pieces will look

View attachment 1674142

View attachment 1674143

Are there any plans to make these available to the public?



[Falkonworks]

Are there any plans to make these available to the public?

Yep that’s exactly what I’m working out right now for the production run. I will be offering a group buy for the initial run and then will stock after that. Group buy information will be coming soon.



[zeepopo2]

Working on a few more things

View attachment 1674009

View attachment 1674010

Would this be the equivalent of a linear rate link?
