I have a couple questions
- Thread starter Hulktruck
- Start date
jeffgordons24
Registered
As long as there is some sort of a header there and your not coming right from the engine manifold you should be okay but the lack of back pressure will really hinder your performance. I ran a dumper off my Yosh 4 - 2- 1 header for a half season and I lost a good part of my bottom end power.
A few guys here I know have some used slip ons for sale, if you or someone you know can get a little creative with a welder you can prob fabricate something up and use a slipon pipe.
As far as the neutral, we need a little more info... have you tried getting into neutral without it running? Are you certain you are able to get it into first gear? Maybe there isn't enough downward travel to catch first gear.
You could pop the linkage off and just secure the linkage squeeze clamp back on the shifter shaft and see if you can get it to go into neutral turning that with a pair of pliers.
Kiwi Rider
Registered
Re the neutral selection problem, can you give us some more info on this, like is it only when the motor is running, or both running and stopped. Has the motor been apart or had any clutch work done recently, a bit of mechanical/service history would help.
I have been back and forth with the idea of a 1k engine in a 660 or 700 Raptor for years.
The exhaust was the only real hurdle, as I didn't want it underneath where it could be damaged.
The best option seemed to be to run 4 into 2.
2 Y pipes for headers, and one pipe going up and out each side( the way single cylinder stock exhaust is routed on most all stock 4wheelers), custom make some heat sheilds and/or heat tape to keep from cooking your legs.
The gas tank would be custom and under the seat. And a small lithium battery can be put in several places.
Have you got the Busa engine in the 4wheeler frame yet?
Any pictures?
The exhaust was the only real hurdle, as I didn't want it underneath where it could be damaged.
The best option seemed to be to run 4 into 2.
2 Y pipes for headers, and one pipe going up and out each side( the way single cylinder stock exhaust is routed on most all stock 4wheelers), custom make some heat sheilds and/or heat tape to keep from cooking your legs.
The gas tank would be custom and under the seat. And a small lithium battery can be put in several places.
Have you got the Busa engine in the 4wheeler frame yet?
Any pictures?
Hulktruck
Registered
I don't know any history on the motor. I bought it opff eBay. Can't get it in neutral stopped or running
Hulktruck
Registered
Yes it is in. I will take some pics and post for you later today
Possible bent shift fork?
Hulktruck
Registered
Yes it shifts through all the other gears no problem
Hulktruck
Registered
Last edited:
Looks really cool.
I would make a double Y shaped header with a U bend perpendicular to the down tubes, and come straight up into a gradual 90 degree bend, and have a pipe on each side going straight past the center of the cylinder block, extending out to under the rear fender, attaching to a muffler on each side. Or making an H pipe behind and above the rear shock into one muffler.
And speaking of shocks, that thing would really benefit from aftermarket adjustable suspension, even stock, but especially with the weight and hp of that engine.
Keep the pics and details coming!
I would make a double Y shaped header with a U bend perpendicular to the down tubes, and come straight up into a gradual 90 degree bend, and have a pipe on each side going straight past the center of the cylinder block, extending out to under the rear fender, attaching to a muffler on each side. Or making an H pipe behind and above the rear shock into one muffler.
And speaking of shocks, that thing would really benefit from aftermarket adjustable suspension, even stock, but especially with the weight and hp of that engine.
Keep the pics and details coming!
Nastee
Registered
This may be a problem? Check the linkage may have been in an accident. Doesn't mean it won't work may not be happy where it is. May have to be a little rough with it while backing it up.
Nastee
Registered

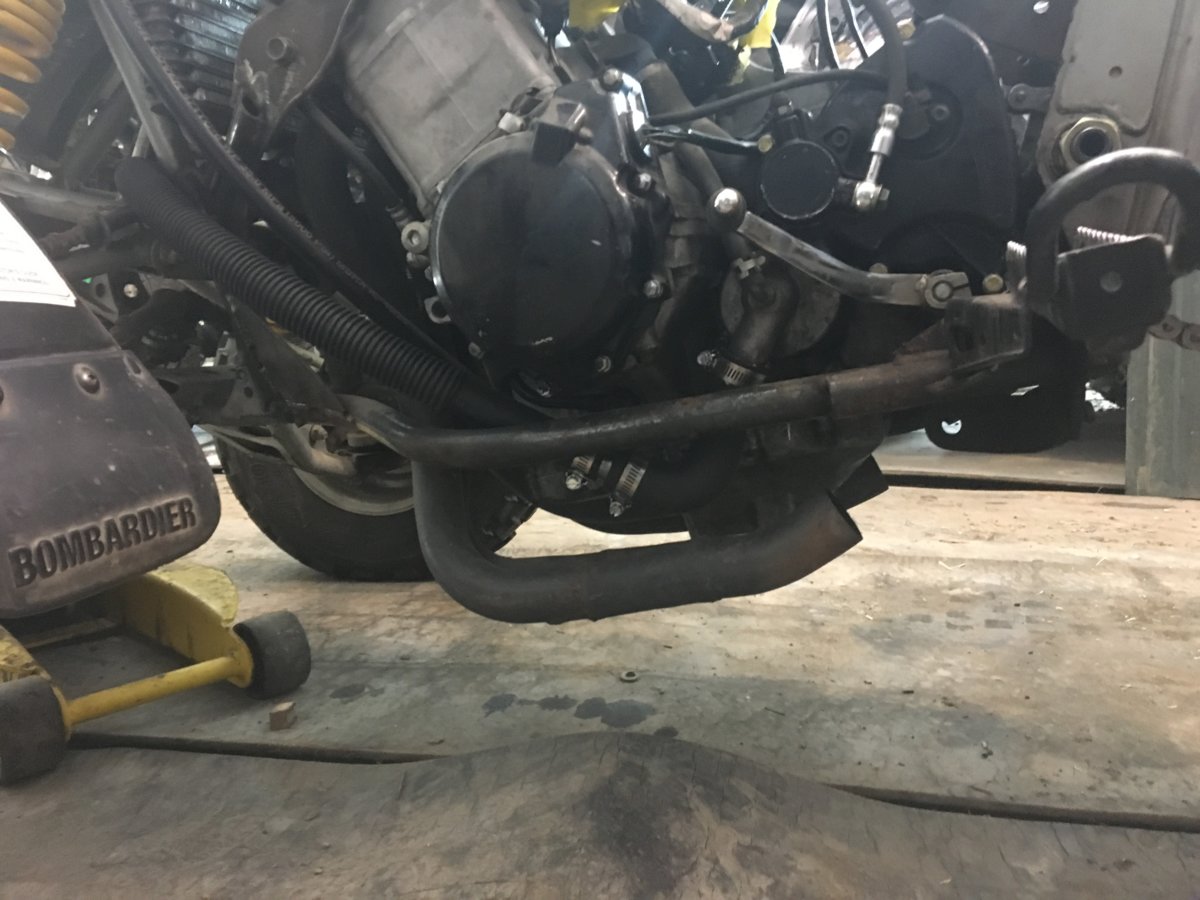

Did you cut the down pipe or did it come that way on motor?
Nastee
Registered
Maybe you can cut up a 2nd down pipe to get the proper angel & length needed to come back far enough. Shortys or megaphone exhaust prior to wheel would be wild to but no reason not out back end if you like. I have Gen 1 down pipe you can have if u pay for shipping.
Hulktruck
Registered
I feel pretty stupid now but once I got looking at some pictures I seen that the bike has linkage for shifter and I am just using a shifter off the quad so 1st is at the top then neutral then 5 more gears down
Hulktruck
Registered
I would definitely be interested in that. Thank you. Figure out how much shipping is to Afton, Wy 83110 and let me know
