Engine heat shield




Heath Morris

Registered
Does anyone have a picture or drawing of some kind that will show me how a engine heat shield on a 2013 should be placed? A rat tore mine up I have a replacement but cant remember how it goes and didnt take a picture when i did it.


ROADTOAD1340

Registered
Well this is best I can do with chinese spy phone ( yes bought chinese ph ) ,
now if you get the crankcase breather (square) lined up , should be easy , then the back part got some kind of strap attachment . I don't know if you also meant the under tank shield , but kind of got it in for ya !! Good luck , better get yourself a Tom to deal with Jerry !! This is Gen 2 .
Toad







Heath Morris

Registered
Well this is best I can do with chinese spy phone ( yes bought chinese ph ) ,
now if you get the crankcase breather (square) lined up , should be easy , then the back part got some kind of strap attachment . I don't know if you also meant the under tank shield , but kind of got it in for ya !! Good luck , better get yourself a Tom to deal with Jerry !! This is Gen 2 .
Toad

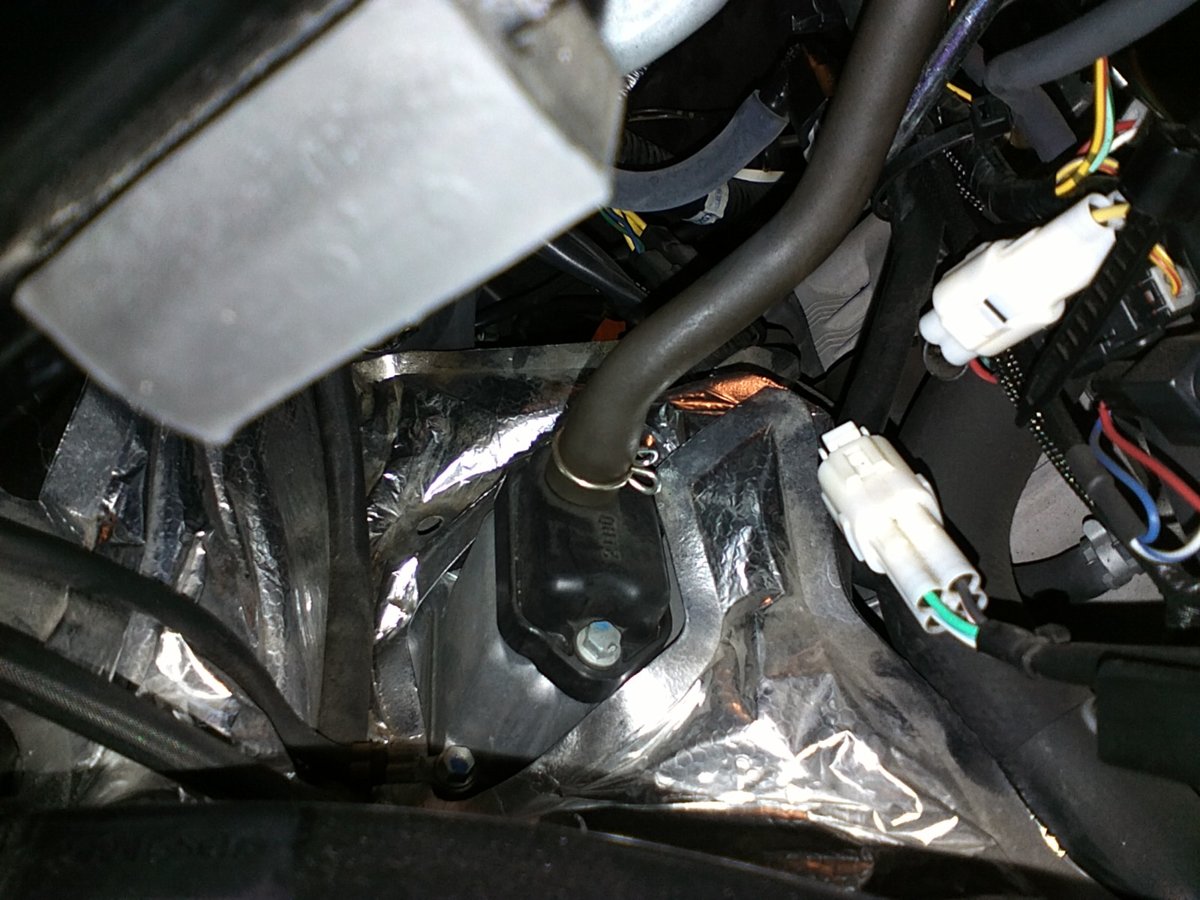

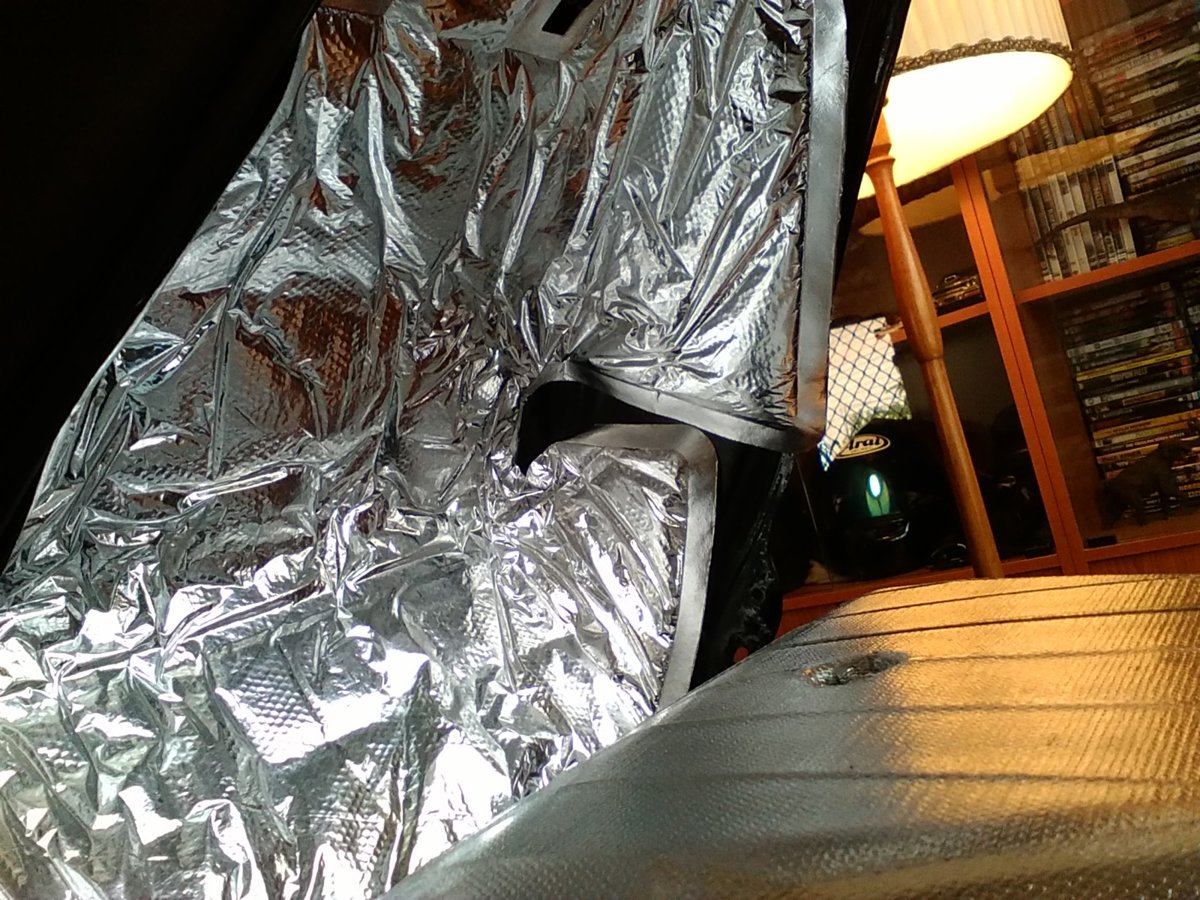

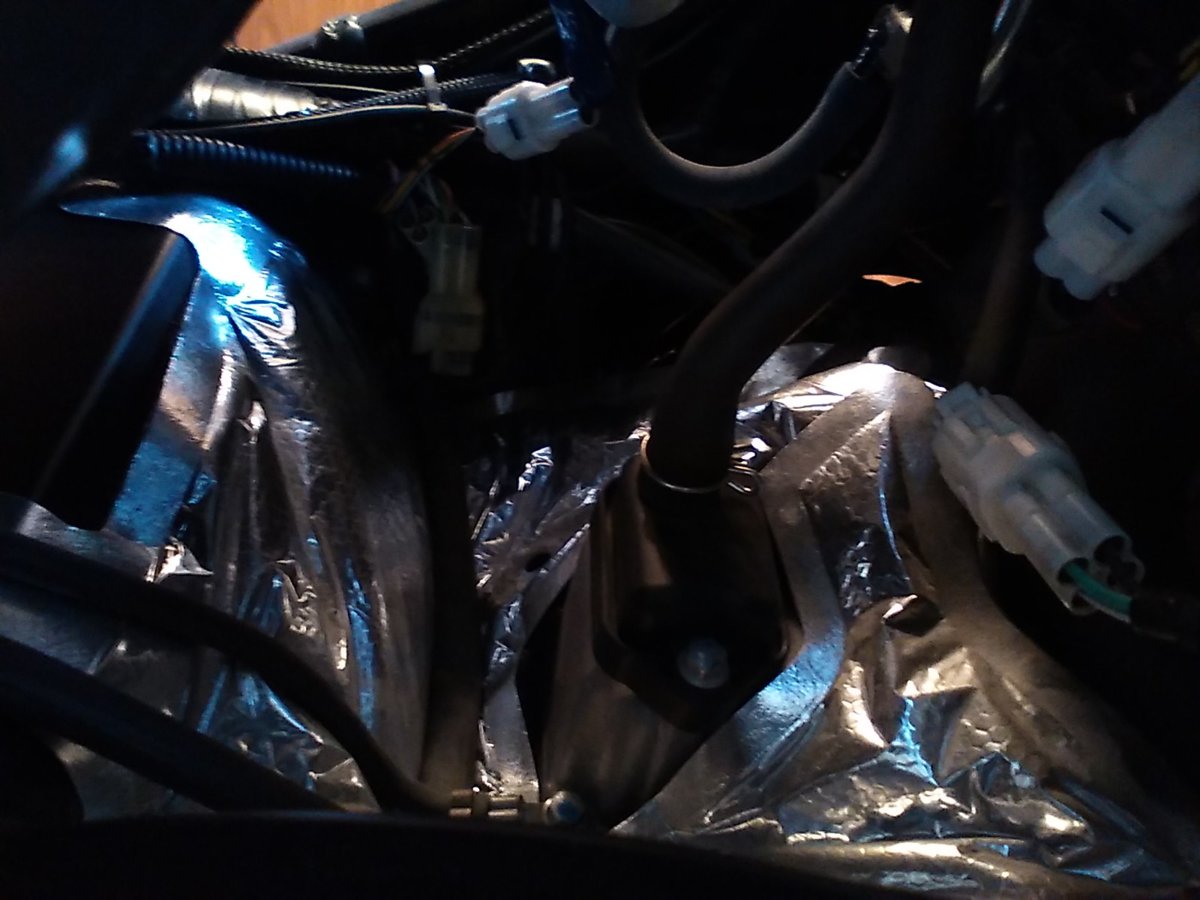

View attachment 1594521

View attachment 1594522

View attachment 1594523
Thank you I really appreciate it!!
