Dual fan setup


ksana

Registered
#1
For those of us, who work 80+hr weeks
And don't have the time to assemble a dual fan setup
I barely have time to ride...don't want to take make it less

Does anyone sell or know someone who can set one up
I need flawless quality work?? (I've seen some very questionable-thrown together radiators)

I really like Bonedust's setup


I will be adding in the fan relocator switch & 2 Muzzy fans, also some connectors

Any help, greatly appreciated


Vspec

Registered
#2
On this topic can someone advise on the secondary fan (ie which one to buy) I brought a Busa one only to find its toooooooooooooooooooo big DOH, guess I should have measured it first.
Now I have measeured it I req a fan assy that is max 50mm or 2" in depth and 125mm or 5" in dia (including the shroud)

Any ideas???

Best regards Alan


gat0r

Donating Member
Registered
#5
but havent seen anyone offering a kit here, i remember someone had one for sale at one point -- either here or on SH.org


ksana

Registered
#6
(gat0r @ Sep. 23 2006,15:05)



but havent seen anyone offering a kit here, i remember someone had one for  sale at one point  -- either here or on SH.org
thanks for all the help bro!!!
good info there

I'm gonna pm Bonedust
see if he'll post pics of his setup
his by far his the most trick I've seen
dual fan, switch, painted, upgraded connectors, engine ice, etc., etc,

#7
thanks for the props, K!

here is how i set mine up...i went a bit overboard.

i replaced the inlet and outlet of the radiator with -16AN bungs, relocated the temp switch and welded and smoothed the old temp sensor hole, moved a few tabs around to mount a 1k fan on the right side, bead blasted the end tanks and painted them with high temp paint, and wired it all up nice and clean.

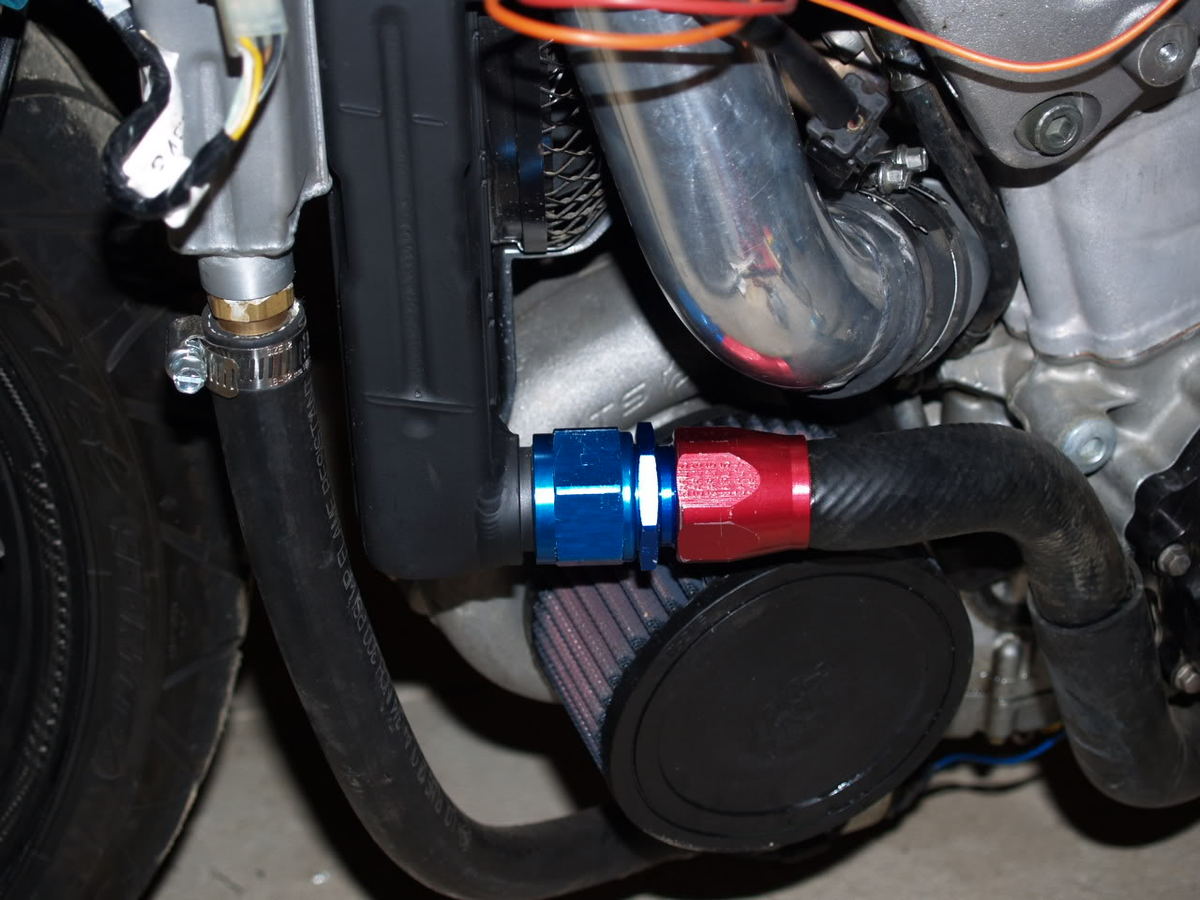

inlet


outlet


temp relocator


fans installed


in this pic you can see the wiring and plugs. i used 2 plugs so i can run an on-off switch in the inter-panel and still have it fully disconnectable.


ive got an extra 1k fan, K. lmk if you need it....or if i can help in any way.


ranman

busaless but lovin the weather
Donating Member
Registered
#9
could you wire the fans together, to come on and off at the same time? or would it short out?


ksana

Registered
#10
too bad they don't have a drool smilie here


yeah B...I'm gonna hit u up, on that fan
thanks for posting!!
damn I love the details...


Vspec

Registered
#11
(bonedust @ Sep. 24 2006,02:51) here is how i set mine up...i went a bit overboard.

fans installed

I take it thats is a standard busa fan on the left but what is the make and model or what bike did the one on the right come from please??

Or can someone who knows him advise on what fan that is from.

Thanx and best regards Alan


BusaCruise

speachless
Donating Member
Registered
#12
I did my 05 not too long ago ... wired the fan to a PMR bar switch housing ....used an 03 gixxer1k fan with a muzzy blade.

there are no shortcuts or PNP options....you are fabbing it custom.
I had to make all my own brackets and grind custom bolts....then wire through a relay.
I'll pass along some photos once i get back home...I took a few during the process.


Vspec

Registered
#13
(BusaCruise @ Sep. 24 2006,18:27) I did my 05 not too long ago ... wired the fan to a PMR bar switch housing ....used an 03 gixxer1k fan with a muzzy blade.

there are no shortcuts or PNP options....you are fabbing it custom.
I had to make all my own brackets and grind custom bolts....then wire through a relay.
I'll pass along some photos once i get back home...I  took a few during the process.
Yep I understand that, I purchased another busa fan and tried to make it fit with no joy, its just toooooooooooooo big, hence I want to know what the fan is in the picture as its the right size approx 125mm or 5" dia and 50mm or 2" in depth.

Come on chaps someone must know what it is he used.

Best regards Alan


BusaCruise

speachless
Donating Member
Registered
#14
most any of the late model gixxer fans will work...
almost all of those were shaped to fit the RIGHT hand side of the radiator.
it's not just a matter of thickness...the shroud is also shaped for it.


ksana

Registered
#16
(Vspec @ Sep. 24 2006,13:39)
(BusaCruise @ Sep. 24 2006,18:27) I did my 05 not too long ago ... wired the fan to a PMR bar switch housing ....used an 03 gixxer1k fan with a muzzy blade.

there are no shortcuts or PNP options....you are fabbing it custom.
I had to make all my own brackets and grind custom bolts....then wire through a relay.
I'll pass along some photos once i get back home...I  took a few during the process.
Yep I understand that, I purchased another busa fan and tried to make it fit with no joy, its just toooooooooooooo big, hence I want to know what the fan is in the picture as its the right size approx 125mm or 5" dia and 50mm or 2" in depth.

Come on chaps someone must know what it is he used.

Best regards Alan
a 1K Muzzy fan
u can't fit 2 Busa fans not like that anyways
1 Busa fan & 1 GSX-R1000 fan
