  1. #1
    Hayabusa Immortal

    jphilipson's Avatar
    Join Date
    Sep 2009
    Posts
    2,710

    Thumbs up Added some LED Driving light to the Gen2

    Just wanted to share my light install in case anyone else is interested in adding some massive light output to their bikes.

    I used the following lights - Quad CREE XML T6 - 3000Lm:

    Quad CREE XML T6 3000Lm 12V 30Watt LED Auxiliary Light, 24x7 Diy

    With the following controller (wiring diagram on page as well):

    Waterproof Wireless LED Dimmer with High Beam Bypass

    I mounted the lights up on my mirrors, but you can put them anywhere you want.

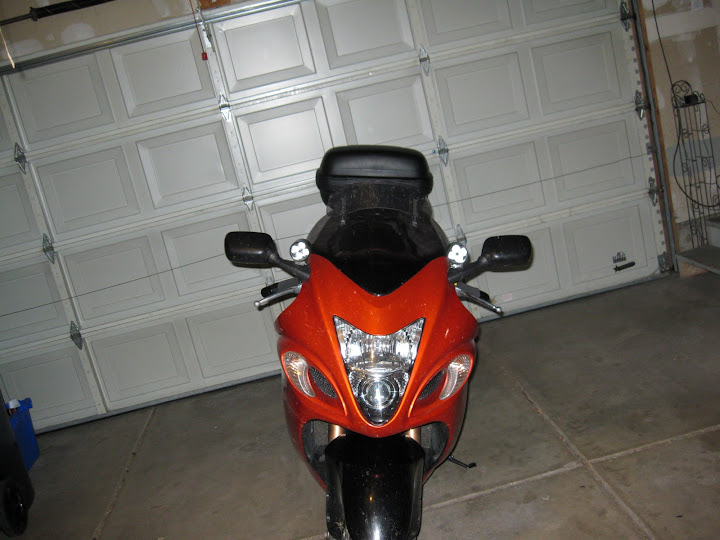

    Lights:





    Wiring runs under the top plastic on the dash - not pretty, but can't be seen unless you're on your knees :



    For wiring I used a fused harness off the battery, connected to a relay mounted under the tank/front seat. Then ran the power from the relay up to the front of the bike near the fuse box.

    Power wire:



    In the picture below is the wiring. The blue lead is the trigger wire for the relay tapped into the low beams. The purple wire is the full power trigger for the LED controller tapped into the high beams.

    Wiring:



    The controller allows the LEDs to be infinitely dim-able via the remote key fob, and jump to full power when you switch on the high beams.The other two sets of connections are the power from the battery/relay to the controller, and the output of the controller to the lights. As the wiring sizes were mismatched, I used Posi-Twist connectors. Pic is before I tied everything down and cleaned it up.

    I did not use a separate switch as the controller has a remote control which suits my needs to turn them on off or dim them.

    Got out to test ride at night with these on some dark roads and they are simply amazing. They put out more usable light than the HID high beam and low combined - and the light is pure white and brings out the detail. I was running them with the lows at about 30% and did not seem to piss off any cagers - switch on the high beams and they jump to full power (much quicker than the HID's, which is nice).

    Here are a few crappy pics I took the other night to show how they compared to the low and high beam (35w HID) - the quality is not great, and the bike is on the side stand.

    high/low:



    high/low and 2x 3000Lm LEDs:



    They camera shots did not do very well at capturing light, but you can see by comparison how much brighter they are. The fence and tree in the distance are a football field away.

    Also, power wise they work well with the limited output of the Busa (400 watts at 5k). I was running heated gear tonight with the HID high/low and LEDs on, and the voltage stayed around 14volt. Did not drop below 13.5 at any time. So they draw an amazingly little amount of current for the output they have.
    2008 Hayabusa - PC3, Yoshimura TRC full system, Corbin seat, SWMotech Tail Rack + Givi case, MRA Vario Touring Screen, Soupy's Bar Risers, HID Hi/Lo - 62k and Counting
    LEDRider LED Motorcycle Lights

  2. #2
    ok, ok...just a wee bit Irish...

    GIXERHP's Avatar
    Join Date
    Jan 2003
    Location
    NASHUA NH
    Posts
    12,985
    Images
    8

    Default Re: Added some LED Driving light to the Gen2

    Why not lower on the forks, like other kits?
    2013 LIMITED, Little Yellow Short Bus!
    04 LIMITED BUSA, 1397 kit, intake cam swap, 50hp wet NOS kit!

  3. #3
    I was cheap, so all I got was a lousy t-shirt kitchener rider's Avatar
    Join Date
    Jan 2009
    Location
    Kitchener Ontario Canada
    Posts
    1,606

    Default Re: Added some LED Driving light to the Gen2

    sweet.. i didnt think they would make that much of a difference.

  4. #4
    Seasoned Beef


    dadofthree's Avatar
    Join Date
    Sep 2006
    Location
    Barnwell, SC
    Posts
    65,879

    Default Re: Added some LED Driving light to the Gen2

    Good for spotting deer
    Robert

  5. #5
    Hayabusa Immortal

    jphilipson's Avatar
    Join Date
    Sep 2009
    Posts
    2,710

    Default Re: Added some LED Driving light to the Gen2

    Quote Originally Posted by GIXERHP View Post
    Why not lower on the forks, like other kits?
    The main reason for the lights is a lot more vision at night, and mounting them higher gives you better/longer light field. Same idea as offroad racers that mount light bars high.
    2008 Hayabusa - PC3, Yoshimura TRC full system, Corbin seat, SWMotech Tail Rack + Givi case, MRA Vario Touring Screen, Soupy's Bar Risers, HID Hi/Lo - 62k and Counting
    LEDRider LED Motorcycle Lights

  6. #6
    Hayabusa Immortal

    jphilipson's Avatar
    Join Date
    Sep 2009
    Posts
    2,710

    Default Re: Added some LED Driving light to the Gen2

    Quote Originally Posted by kitchener rider View Post
    sweet.. i didnt think they would make that much of a difference.
    Yeah, they sure do - LED technology has come a long way
    2008 Hayabusa - PC3, Yoshimura TRC full system, Corbin seat, SWMotech Tail Rack + Givi case, MRA Vario Touring Screen, Soupy's Bar Risers, HID Hi/Lo - 62k and Counting
    LEDRider LED Motorcycle Lights

  7. #7
    Hayabusa Master Sum Beach's Avatar
    Join Date
    Jun 2009
    Location
    Cleveland
    Posts
    1,973

    Default Re: Added some LED Driving light to the Gen2

    This is a deffinite winter mod i am going to do!!
    Love getting different ideas!! Thanks!!
    It only takes a second to show someone you care about them......The police call it indecent exposure but whatever......

  8. #8
    Hayabusa Immortal

    mr8ball's Avatar
    Join Date
    Oct 2007
    Location
    Lynchburg Va
    Posts
    5,807
    Images
    2

    Default Re: Added some LED Driving light to the Gen2

    They sure do put out some good light. Nice job and thanks for sharing
    Doug C. Playing pool and going FAST (Check out car pics) http://s1048.photobucket.com/albums/s372/dCarter53/

  9. #9

    Join Date
    Apr 2012
    Posts
    8

    Default Re: Added some LED Driving light to the Gen2

    sorry that my first post is a complain, but i dont want to let this guy do what ever he wants with unprotected buyers!
    I will Leave the following message in every link that has a review for this seller 24x7 DIY in all over the internet!!
    ...for all of those i am telling i have fotos,video, invoice and receipt!

    I bought a 4 LED 1800Lm Auxiliary Driving Light Pair from a guy in india,
    a seller named 24x7 DIY. I bought his cree led lights directly from his link
    4 LED 1800Lm Auxiliary Driving Light Pair, 24x7 DIY!
    I paid with paypal and after 10-15 days i had them connected on my motorbike!
    After 3 days the lights BURNED and this devious guy blamed me until i showed him
    a video of my connections with measurements by a voltometer as he told me, then he asked me
    to send him back the item cause everything seemed to be ok with my connection,
    giving me the impression that he will take the blame, something that never happened!
    This guy now has taken my money 139$ the light pair and I HAVE NOTHING, only an invoice
    of paypal payment and a receipt from the postal office of the shipping back to India!
    I fell helpless because the dispute that i did to paypal had no effect, they told me
    they will refund me but when i send them the track number they asked me, i get a respone
    "the track number is invalid" the case is closed and they let me unprotected!
    I feel like someone stole my money and someone who promised me secure transaction let me unprotected!

    24x7 DIY is not a seller you can trust!!

  10. #10
    Top Gun
    Join Date
    Mar 2012
    Location
    Miramar, Fl
    Posts
    1,078

    Default Re: Added some LED Driving light to the Gen2

    Man that sucks thanks for the heads up geo.

    Quote Originally Posted by geostrom View Post
    sorry that my first post is a complain, but i dont want to let this guy do what ever he wants with unprotected buyers!
    I will Leave the following message in every link that has a review for this seller 24x7 DIY in all over the internet!!
    ...for all of those i am telling i have fotos,video, invoice and receipt!

    I bought a 4 LED 1800Lm Auxiliary Driving Light Pair from a guy in india,
    a seller named 24x7 DIY. I bought his cree led lights directly from his link
    4 LED 1800Lm Auxiliary Driving Light Pair, 24x7 DIY!
    I paid with paypal and after 10-15 days i had them connected on my motorbike!
    After 3 days the lights BURNED and this devious guy blamed me until i showed him
    a video of my connections with measurements by a voltometer as he told me, then he asked me
    to send him back the item cause everything seemed to be ok with my connection,
    giving me the impression that he will take the blame, something that never happened!
    This guy now has taken my money 139$ the light pair and I HAVE NOTHING, only an invoice
    of paypal payment and a receipt from the postal office of the shipping back to India!
    I fell helpless because the dispute that i did to paypal had no effect, they told me
    they will refund me but when i send them the track number they asked me, i get a respone
    "the track number is invalid" the case is closed and they let me unprotected!
    I feel like someone stole my money and someone who promised me secure transaction let me unprotected!

    24x7 DIY is not a seller you can trust!!

  11. #11

    Join Date
    Apr 2012
    Posts
    8

    Default Re: Added some LED Driving light to the Gen2

    Here is the receipt of shipping back the lights to india
    http://img816.imageshack.us/img816/9...ceiptpaint.jpg

    Here is the video i send him to see my connections
    Demo led - YouTube

    here is the paypal invoice
    ImageShack® - Online Photo and Video Hosting

    Here are other guys in other forums that had the same problem with me
    The links:
    LED Driving Light Install (from ADVrider) - Kawasaki Versys Forum
    http://www.fjrforum.com/forum//index...c=142023&st=20
    How to fix your LED driving lights - ADVrider
    F800ST fog light problem - BMW F800 Riders Forum & Registry

    And here is this seller on ebay start loosing his feedback!..98,8%!

  12. #12

    Join Date
    Apr 2012
    Posts
    8

    Default Re: Added some LED Driving light to the Gen2

    Here is the receipt of shipping back the lights to india
    http://img816.imageshack.us/img816/9...ceiptpaint.jpg

    Here is the video i send him to see my connections
    Demo led - YouTube

    here is the paypal invoice
    ImageShack® - Online Photo and Video Hosting

    Here are other guys in other forums that had the same problem with me
    The links:
    LED Driving Light Install (from ADVrider) - Kawasaki Versys Forum
    http://www.fjrforum.com/forum//index...c=142023&st=20
    How to fix your LED driving lights - ADVrider
    F800ST fog light problem - BMW F800 Riders Forum & Registry

    And here is this seller on ebay start loosing his feedback!..98,8%!


    here is me "4kings" to the suzuki vstrom hellas forum Óżķäåóē talking with the seller

  13. #13

    Join Date
    Apr 2012
    Posts
    8

    Default Re: Added some LED Driving light to the Gen2

    Here is the receipt of shipping back the lights to india
    http://img816.imageshack.us/img816/9...ceiptpaint.jpg

    Here is the video i send him to see my connections
    Demo led - YouTube

    here is the paypal invoice
    ImageShack® - Online Photo and Video Hosting

    Here are other guys in other forums that had the same problem with me
    The links:
    LED Driving Light Install (from ADVrider) - Kawasaki Versys Forum
    http://www.fjrforum.com/forum//index...c=142023&st=20
    How to fix your LED driving lights - ADVrider
    F800ST fog light problem - BMW F800 Riders Forum & Registry

    And here is this seller on ebay start loosing his feedback!..98,8%!


    here is me "4kings" to the suzuki vstrom hellas forum Óżķäåóē talking with the seller

  14. #14

    Join Date
    Apr 2012
    Posts
    8

    Default Re: Added some LED Driving light to the Gen2

    I think eventually guys with the same problem we will finally gather and all together give an end to this deceit!

    we shouldn't let people make deceits and make fortunes this way!

    check this F800ST fog light problem - BMW F800 Riders Forum & Registry

  15. #15

    Join Date
    Apr 2012
    Posts
    8

    Default Re: Added some LED Driving light to the Gen2

    as i said before paypal closed my case with the excuse that "the track number is invalid"
    so i came in touch with my post office and i got this response

    "In reply to your e-mail, we would like to inform you that, according to our Tracking System and the International Postal System, the item in question was forwarded to its destination country in dispatch 3044 GRATHA - INBOMA A on 23/03/2012 and according to updated entries by the foreign Postal Administration, in the International Postal System, the item in question was dully delivered to its rightful owner on 29/03/2012.



    For further information, regarding the handling of the item by the foreign Post Service and its delivery, the sender must fill an Inquiry Form CN08 in any Post Office within a period of six months since the day that, the Item was posted."


    now i have to fill this inquiry (first thing tommorow) and get all the results of the delivery, then new evidence will be sent to paypal!


    even i take my money back or not this kind of deceit shouldn't be allowed so as a human being with honor i will try to stop it for the good of our motorcycle communities

    I think eventually guys with the same problem we will finally gather and all together give an end to this deceit!

    we shouldn't let people make deceits and make fortunes this way!

    check this F800ST fog light problem - BMW F800 Riders Forum & Registry

  16. #16

    Join Date
    Apr 2012
    Posts
    8

    Default Re: Added some LED Driving light to the Gen2


    [][][][][][][][][][][][][][][][][][][][]

    Μy case closed in a positive way so this will be my last post concerning this fraud seller 24x7 diy.
    Eventually after all i've been through trying to prove the obvious paypal's research team did their work and made a full refund to my account!

    I hope this will be a lesson for all of us having this kind of problems with bad sellers, persistence, patience and public complaint is our weapon!

    In my country we say "The insistent beats"

    ..good faith to you all!

  17. #17
    Professional Pilot stangman327's Avatar
    Join Date
    Oct 2011
    Location
    Glen Burnie, Maryland
    Posts
    799

    Default Re: Added some LED Driving light to the Gen2

    I'm happy that you got your case resolved

  18. #18

    Join Date
    Apr 2012
    Posts
    8

    Default Re: Added some LED Driving light to the Gen2

    Quote Originally Posted by stangman327 View Post
    I'm happy that you got your case resolved
    I am very happy too

    I thank you all guys in this motorcycle community for keeping in public the truth!
    ...public complaint with FACTS is our weapon!

    one of the things in life we like most is riding and we riders must be united
